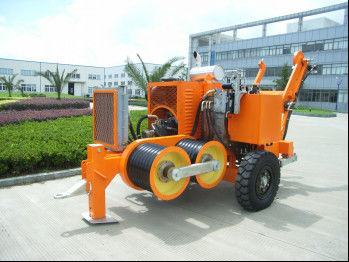

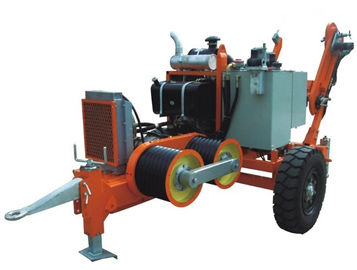

Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch

Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch
Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch

Large Image :  Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YQ90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: get latest price
Packaging Details: standard export wooden case
Delivery Time: 60-90 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1 Set/Sets per Month

Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch

Description
Maximum Linepull (kN): 90 Continuous Linepull (kN): 80
Maximum Linespeed (km/h): 5 Bullwheel Grooves Number: 7
Weight (kg): 4300 Type: Cable Stringing Equipment
Usage: Cable Pulling Warranty: 1 Year
High Light:

cable stringing equipment

,

wire pulling tools

Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch



Application

This machine allows for the tension stringing of twin-bundle conductor of 500mm2

and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2

and below in flat lands, and of single conductor 720mm2 in various terrains;

besides, it can be used for traction stringing of OPGW or ADSS optical cable

and 220kV haulage rope in various terrains.



Feature

1. infinitely variable speed and linepull control ,the pull in the rope can be read on the line pull gauge .

2. the max pull  for conductor –stringing operation can preset ,automatic overpull protection system .

3.spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .

4. hydraulic pull rope clamp ,replacing steel conveniently .

5. attached reel winder with automatically level wind .load and unload conveniently .



Performance parameter

Max intermittent  pulling force : 90KN

Max continous pulling force: 80KN

Corresponding speed: 2.5km/h

Max continous pulling speed: 5km/h

Corresponding pulling force: 40KN



Structure parameter

Puller wheel diameter: 540mm

Groove number: 8

Max diameter of applicable steel wire rope : 21mm

Electric systerm: 24V

Max diameter of applicable wire coil: 1400mm

Total weight: 4000kg

overall dimension (length*width*height): 4000×2200×2100mm



Main configurations

Engine:Cummins

Main pump: German Rexroth

Main moterspeed reducer : German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German



Technical Data

 Performance parameter  max inMax intermittent  pulling force  90kn
   Max continous pulling force  80kn
   Corresponding speed  2.5km/h
   Max continous pulling speed  5km/h
   Corresponding pulling force  40KN
 Structure parameter  Puller wheel diameter 540mm
   Groove number  8
   Max diameter of applicable wire coil:  1400mm
 Main comfigurations  Engine  Cummins
   Main pump   German Rexroth



Practical Application

Cummins Engine Cable Stringing Equipment 90KN Hydraulic Cable Puller Winch 0
