Product Details:
|
| Maximum Linepull(KN): | 40 | Continuous Linepull(KN): | 35 |
|---|---|---|---|
| Maxmum Linespeed(km/h): | 5 | Bullwheel Bottom Of Groove Diameter(mm): | Φ400 |
| Bullwheel Grooves Number: | 7 | Maximum Suitable Steelrope Diameter(mm): | Φ16 |
| Maximum Through Connector Diameter(mm): | Φ50 | Engine Power/speed(kw/rpm): | 60/2000 |
| Dimensions(mm): | 3500*2000*2300 | Weight(kg): | 2500 |
| High Light: | tension stringing equipment,cable puller tensioner |
||

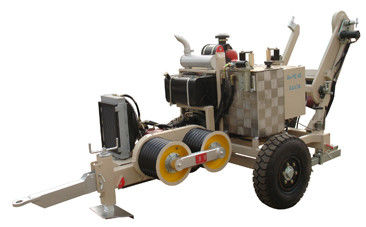

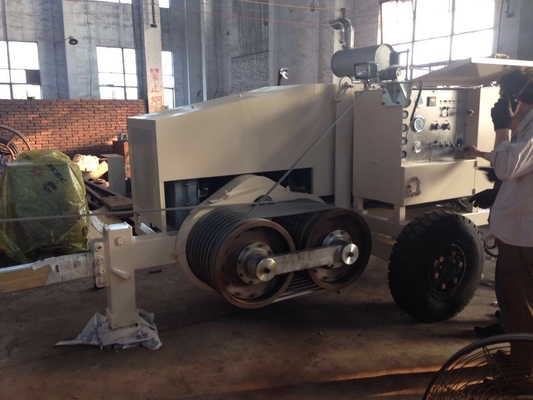

SA-YQ40 40KN Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line
main component
1. Engine:Cummins(DONGFENG) water cooled engine.
2. Main variable pump and main motor:rexroth(BOSCH).
3,Reducer:RR(Italian).
4.Main hydraulic valve:rexroth(BOSCH)
5. Radiator:AKG
6. Hydraulic instrument:
7. Mating with model GSP1400 drum .
Characteristic
1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.
2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.
3. Maximum traction force can be preset, automatic overload protection.
4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.
6. Trailer type structure,rigid scaffold,attractive appearance.
Feature
1. Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2. The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
3. Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4. Attached reel winder with automatically level wind .load and unload conveniently .
Technical Data
| Maximum linepull (kN) | 40 |
| Continuous linepull (kN) | 35 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ400 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter (mm) | Φ16 |
| Maximum through connector diameter (mm) | Φ50 |
| Engine power /speed (kW/rpm) | 60/2000 |
| Dimensions (mm) | 3500×2000×2300 |
| Weight (kg) | 2500 |
