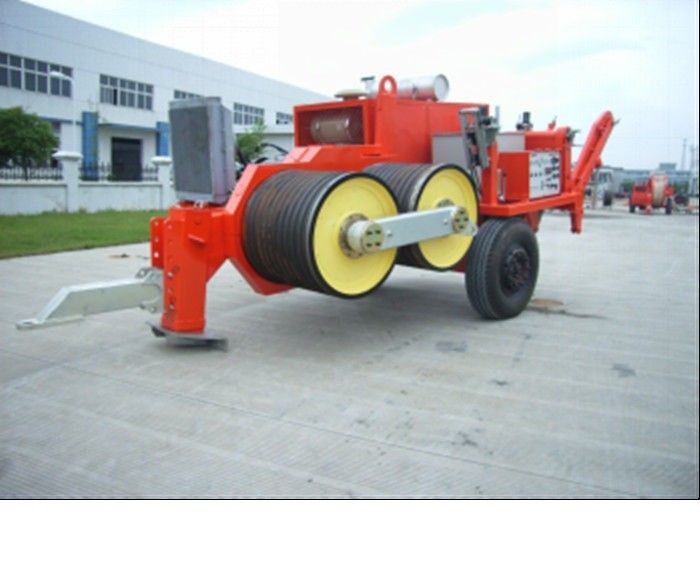

Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180

Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180
Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180 Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180 Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180

Large Image :  Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180

Product Details:
Place of Origin: Jiangsu,China(mainland)
Brand Name: Xinya
Certification: ISO
Model Number: SA-YQ180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: standard export package
Delivery Time: 50 days after payment
Supply Ability: 50 Set/Sets per Month

Hydraulic Puller With Diesel Engine for transmission lines / power construction , SA-YQ180

Description
Maximum Linepull(KN): 180 Continuous Linepull(KN): 150
Maxmum Linespeed(km/h): 5 Bullwheel Grooves Number: 9
Engine Power/speed(kw/rpm): 209/2100 Dimensions(mm): 5500*2170*2570
Weight(kg): 7500
High Light:

tension stringing equipment

,

cable puller tensioner

SA-YQ180  Hydraulic Cable Puller With Diesel Engine for 220KV Transmission Line

main component

1. Engine:Cummins(USA) water cooled engine.

2. Main variable pump and main motor:rexroth(BOSCH).

3,Reducer:RR(Italian).

4.Main hydraulic valve:rexroth(BOSCH)

5. Radiator:AKG

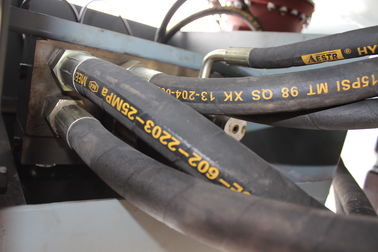

6. Hydraulic instrument:

7. Mating with model GSP1600 drum .

Characteristic

1. It is applied to traction in the process of paying off the wire,earth wire,OPGW and ADSS.

2. Closed Hydraulic back oil circuit, bidirectional variable plunger pump ,you can change the traction in any case.

3. Maximum traction force can be preset, automatic overload protection.

4. Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.

5. Hydraulic traction rope clamping device, automatic rope ,convenient to loading and unloading.

6. Trailer type structure,rigid scaffold,attractive appearance.

Feature

1. Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2. The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
3. Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4. Attached reel winder with automatically level wind .load and unload conveniently .

Technical Data

Maximum linepull (kN) 180
Continuous linepull (kN) 150
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm) /
Bullwheel grooves number 9
Maximum suitable steelrope diameter (mm) /
Maximum through connector diameter (mm) /
Engine power /speed (kW/rpm) 209/2100
Dimensions (mm) 5500×2170×2570
Weight (kg) 7500
