Product Details:
|
| Rated Load(KN): | 20~60 | Material: | Nylon/Aluminium |
|---|---|---|---|
| Number Of WHEEL: | 1,2,3,4,5 | Type: | Round Belt, Stringing Block |
| Weight（kg）: | 18~93 | ||
| High Light: | construction hand tools,building construction tools |
||

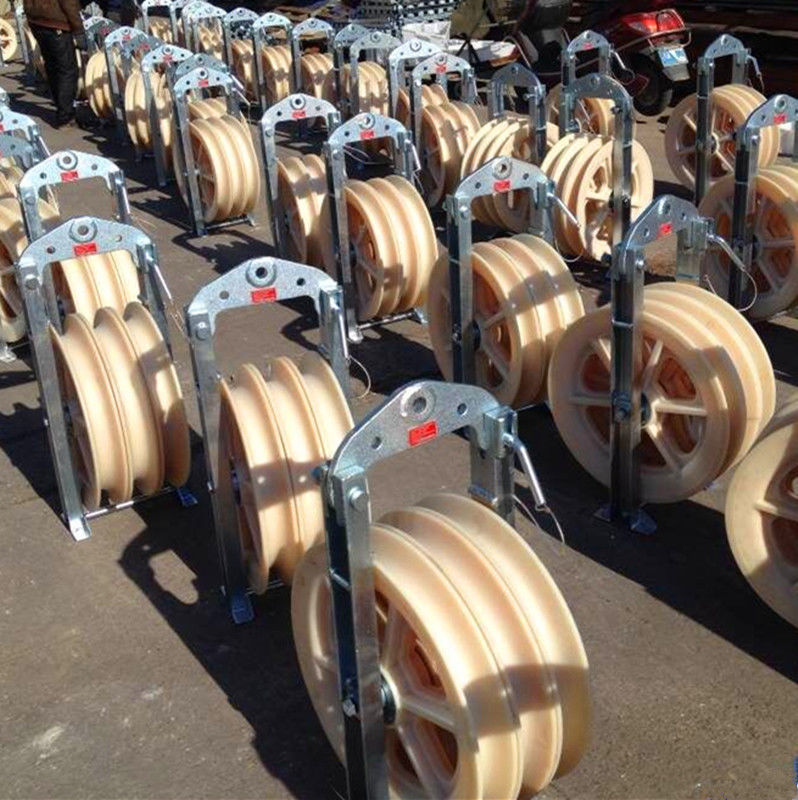

Transmission parts pulleys Model 508 Bundled Conductor Stringing Block pulley With Large Diameter
Usage:
Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Note:
1.Maximum suitable conductor ACSR400
2.Block dimension (outside diameter *root diameter*sheave width)Φ508*Φ408*75mm
Technical Data for Model 508 Bundled Conductor Stringing Block pulley With Large Diameter
| Model | Number of wheel | Rated load(KN) | Weight(kg) | Features |
| SHD508 | 1 | 20 | 18 | Rubber lined aluminous sheave |
| SHS508 | 3 | 40 | 61 | Middle:cast steel sheave conductor:rubber lined aluminous sheave |
| SHW508 | 5 | 60 | 93 | |
| SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| SHSLN508 | 3 | 40 | 47 | Middle:MC nylon sheave conductor:rubber lined aluminous sheave |
| SHWLN508 | 5 | 60 | 79 | |
| SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| SHWQN508 | 5 | 60 | 70 |
