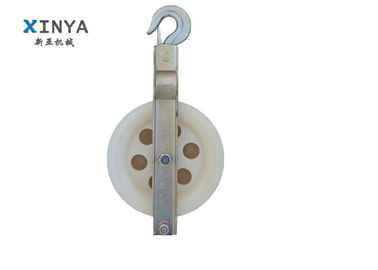

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools
Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools

Large Image :  Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools

Product Details:
Place of Origin: JIangsu, China
Brand Name: XINYA
Certification: ISO9001
Model Number: SHDN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: get latest price
Packaging Details: carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000pieces/month

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools

Description
Rated Load: 15KN Material: MC Nylon
Application: Stringing Function: Protect Cable
Name: Single Sheave Cable Hanging Pulley Wheel Size(mm): 200*60
High Light:

block and tackle hoist

,

wire rope pulley block

Single Sheave Cable Hanging Pulley with Hook for stringing cable conductor





Power and communication cables are often laid in open trenches where the road and ground conditions result in the cable route having a number of curves. With the cable’s own weight and the high tensions involved the cable cannot be fed cleanly.

We manufacture a lot of models Cable pulling block for different uses in the overheadtransmission lineconstruction.They have are used to support conductors, OPGW,ADSS, communication lines.



Features:

1.Good wear-resistance,no deformation,long life cycle and so on.

2.We are an OEM supplier specializing in varous casting,forgings and machining

3.The quality of our products have all passed the international standards.

4.The processed products are exported to Asia, Europe, Africa, the United States and other countries.

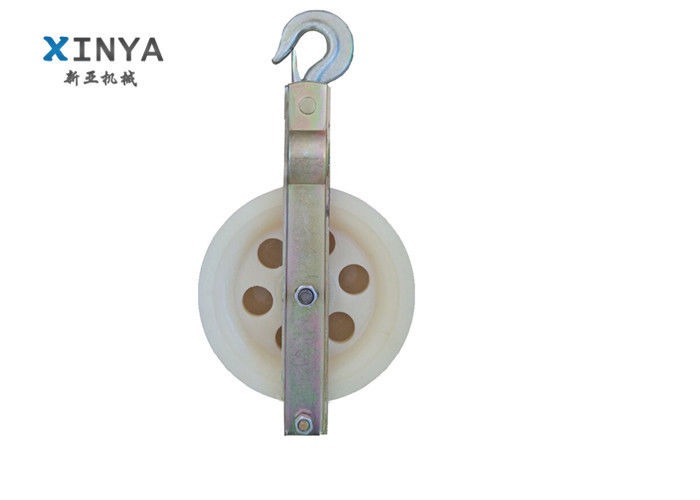

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools 0

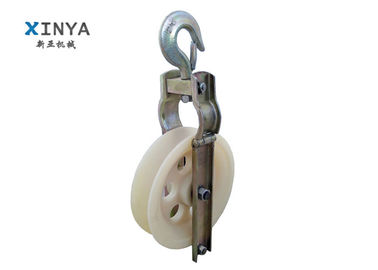

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools 1



Different type have diffeent specifications:

This is only part of the specification, we can do it according to your request.

Model length width weight
20KNcable pulley block 250mm
120mm 50mm 2.6kgs/pc
250mm 60mm 5kgs/pc
750mm 60mm
150mm 110mm 3.5kgs/pc
120mm 75mm
120mm 100mm 2.25kgs/pc
100mm 60mm 2.1kgs/pc
80mm 50mm 1.4kgs/pc
660mm 100mm
large diameter conductor pulley block 508mm 75mm 25kgs/pc
660mm 100mm 45kgs/pc
Packing &Delivery

cable pulley wheels packed by carton , by wooden case or as your request.

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools 2

Application

Cable Pulley Wheels Usage:

Protect the cable and conductor from fricting when they are laying.They can save time and effort.

Single Sheave Cable Hanging Pulley Transmission Line Stringing Tools 3
