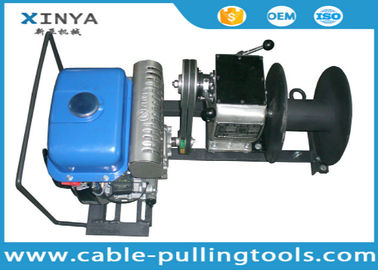

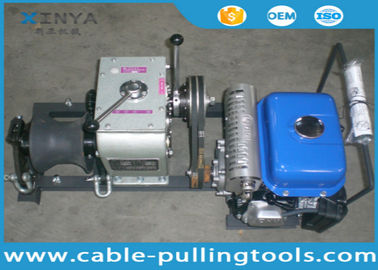

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine
1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine 1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine

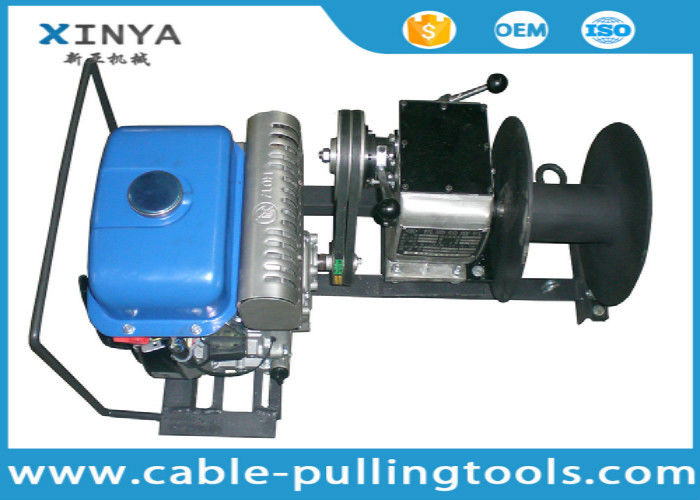

Large Image :  1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINY
Certification: ISO
Model Number: JJM1Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD750-900/set
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/week

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine

Description
Application: Power Construction Usage: Cable Pulling/Hoisting
Capacity: 10KN Engine: Yamaha Engine
Max Pulling Speed: 15m/min Weight(kg): 36
Selling Point: Yamaha Engine Winch Name: Portable Gasoline Cable Winch Puller With Yamaha Engine
Type: Cable Winch Puller
High Light:

gasoline powered winch

,

engine powered winch

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine



Application

1. It is used for tower erection

2. It is used for pole setting

3. Stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Structure
1. roller wheel

2. transmission

3. diesel or gasoline engine

4. the base frame composition

5. Motor cutter grinding works: winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force, after shifting box of gear to achieve the required speed, the machine is located on steel, ro. bust and easy to move.



Yamaha Engine

Features

Small power yamaha engine
low vibration,low noise

Easy to operate and high safty

Precise Machining Technique

Long Life of the Machine

Delicate and Beautiful Appearance Design

Broader Applicable Scope

Good quality and less malfunction

Specifications

Fuel:gasoline

Stroke:4 stroke

Cylinder: Single Cylinder

Cold Style: Air-cooled

Start: Kick Start

Displacement: 250cc

Starting System: Recoil/Electric Key start



Transmission and Brake System

1. Belt driven transmission

2. Automatic clamp brake and clutch brake transmission interlock two brakes are braking action in positive and negative directions.



Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q Yamaha engine 4 HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
Electric motor (Slow) 10.0 0.8 48
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!



Practical Application

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine 0

1 Ton Portable Gasoline Cable Winch Puller With Yamaha Engine 1
