Product Details:
|
| Usage: | Power Construcion | Fuel: | Gasoline |
|---|---|---|---|
| Weight(KG): | 60 | Tank Volume(L): | 8 |
| Max Output Pressure(Mpa): | 100 | Rated Pressure(Mpa): | 80 |
| Structure: | Plunger Pump | Selling Point: | Yamaha Engine |
| High Light: | block and tackle hoist,cable hoist puller |
||

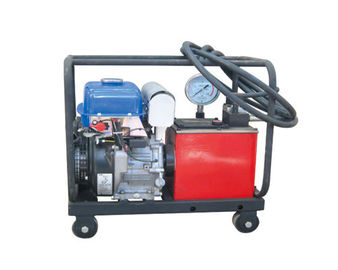

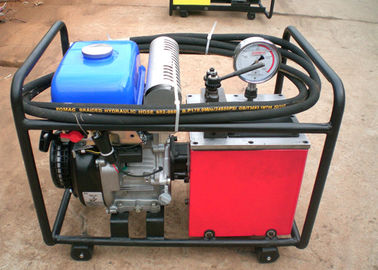

80Mpa Yamaha Gasoline Engine Hydraulic Pump Used Along With Hydraulic Compressor For Crimping ACSR
Application
Application of Yamaha Hydraulic Pump: to provide power for the cutting tool, the hydraulic compressor, punching machine
and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Specifications
Engine:Yamaha Gasoline Engine
Fuel:gasoline
Stroke:4 stroke
Cylinder: Single Cylinder
Cold Style: Air-cooled
Start: Kick Start
Displacement: 250cc
Starting System: Recoil/Electric Key start
Features
1 Easy to operate and high safty
2 Precise Machining Technique
3 Long Life of the Machine
4 Delicate and Beautiful Appearance Design
5 Broader Applicable Scope
6 Good quality and less malfunction
Technical Data for High Pressure Gasoline Hydraulic Pump
| Product NO. | Type NO. | Rated Pressure(Mpa) | Rated Flow(L/min) | Max output pressure(Mpa) | Tank Volume(L) |
| 80043 | JYB-80-2Q | 80 | 1.6 | 85 | 8 |
DAILY MAINTENANCE
The life,reliablity,and safety of the tool is dependent on proper maintenance.Clean all surfaces including
head,die seat,ram,and body.
Inspect for wear and damage.Worn or damaged parts may malfunction during operation.
All parts must be replaced with new parts if signs of wear or damage are evident.
Keep Lable Set clean and legible.Replace decales when necessary.
Manufacturer recommends regular testing for proper pressure and operation.
Test at least every 6 months,test more often under heavy usage.
GENERAL INFORMATION
1. IMPORTANT:Extreme caution should be used to prevent the entry of this material into th unit.Wipe off all
couplings and fittings before connecting to unit.Be sure that any pump to be used with the compression
tool is clean and free of dirt and contamminants.
2. PERIODIC MAINTENANCE:Occasionally lubricate die stop plunger assemblies.Use of a molybdenum
disulfide grease is recommended.Pull pin and pivot pin assemblies should also be cleaned and
lubricated to prevent sticking.
3. Oil LEAKAGE:A small amount of seepage from the piston and pump seals is normal and necessary
to aid in the lubrication of the moving parts.Excessive leakage may indicate the need for seal
replacement and should be performed only by an authorized reliable service center
Practical Application
