Product Details:
|
| Warranty: | One Year | Weight(KG): | 23 |
|---|---|---|---|
| Working Stroke(mm): | 180 | Bending Angle: | 0° - 90° |
| Standard Or Nonstadard: | Standard | Application: | Busbar Bending |
| High Light: | busbar bending machine,busbar punching machine |
||

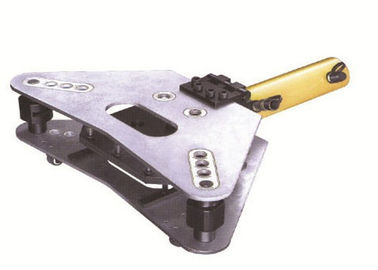

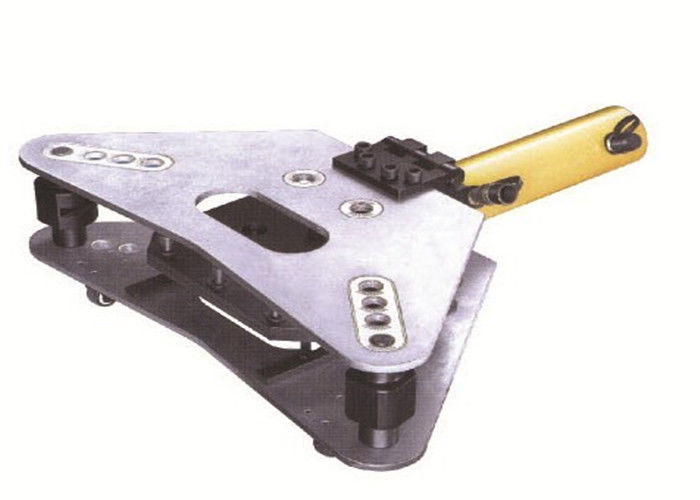

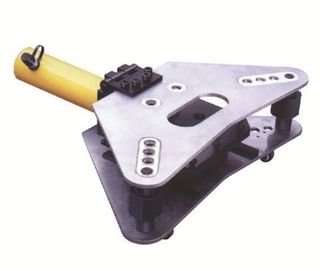

63MPa Hydraulic Copper Busbar Bending Machine for Busbar Bending and Flating
Specifications
This machine is the light of foreign advanced products,combined with the actual situation in china,in order to improve work efficiency,To save hours of work,while the design and manufacture.
Suitable for transmission and distribution in a large workshop and site work,construction,and power distribution cabinets and switch cabinets,etc.The use of electrical appliances factory.
The machine is equipped with:bending,cutting,punching functionality.Optional foot switch or wire switch,easy to operate.
Use and Characteristic
1. Used for bending copper and aluminum bus bar
2. With different bending angles
3. The body can be opened, the bending bus bar will be taken out easily
4. The max bending angle is 90
5. With width digit marking to avoid damage after bending
6. Product supplied with steel carrying case
7. Lightweight and portable for batch production on site or in factory
8. No damage to workpiece surface after being bent
9. Equipped with quick coupler for easy disassembling
10. Connected with single-acting hydraulic pump
Application
In recent years YMLA Hydraulic Copper busbar bending machine developed a new type of copper and aluminum row row split hydraulic bending machine. Widely used in copper and aluminum busbars 125mm wide and less copper and aluminum row bending, is an essential tool for hydraulic power plants, substations.
Structure
1. Working cylinder
2. Rapid connector
3. Side of block
4. Spent on board
5. Under the flower plate
5. Roll column
6. R template
7. Clamp die
8. Right angle die
9. United pole plate
10. Pin
11. Car
12. High pressure pipeline
13. hand pump(electric pump)
Features
1. The dual machine is designed for flat bending and standing of brass and Al. Curve radian accords with national standard.Smooth without knit.No wing plate adopts without welding hingle style.Meanwhile,which is by tempering processing,strong and during, no breakage and prevent aperture from transformation,switching convenience..
2. The unique design of curve bending scale 45-90 degrees, a curved shape.In the field of high precision, lead and find the template matahing row.Installation qulickly and easliy, engaged in the personnel with high efficiency, in power line or machine or maintenance on-site application.exert its powerful efficiency.
Technical Data
|
Max work pressure |
63Mpa |
|
Max Stroke |
200mm |
|
Bending thickness |
12mm max of Cu/AL sheet;10mm max of steel plate. |
|
Bending width |
125mm max |
|
Bend angle |
D>90 degree angle,arbitrary angle |
|
Bend radius |
R=row width*2.5 |
|
Oil type |
16# hydraulic oil |
|
Oil capacity |
600ml |
|
Weight |
82kg |
