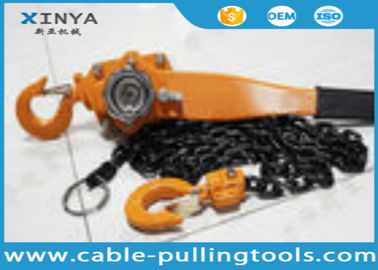

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting
0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting 0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting

Large Image :  0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: VA
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: get latest price
Packaging Details: carton
Delivery Time: 7-10 workdays after payment
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 1000sets/week

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting

Description
Weight: 6.6 - 23.7kg Rated Load: 0.75 - 6 Ton
Lifting Length: 1.5m Power Source: Hand Chain
Usage: Construction Hoist Application: Tight Line
MOQ: 10 Sets Warranty: 1 Year
High Light:

gin poles

,

lattice poles

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting



Introduction

1. Hook:made of high-class alloy steel,it has high strength and high security.

2. Components:main components are all made of high-class alloy steel,with high precision and security.

3. Framework: slight design and more beautiful; with less weight and smaller work area.
4. Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
5. Encloser made of high-classed steel,more firmly and dexterous.


Application
It is for the lifting of objects and mechanical traction, tightening steel wire, aluminum wire .

Features
It is widely used in shipbuilding, electric power, transportation, construction, mining, telecommunications and other sectors of the equipment installation, lifting, pulling. Hand hoist is safe, reliable, durable, good performance, easy to repair, small volume, light weight, convenient to carry, not much manual force and high efficiency, the perfect structure and beautiful appearance. Hand chain hoist and hoist are called manual hoist. It is used to lift weights by human, and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load.
Used to tighten the wire, lifting equipment and it is suitable for high altitude operation.
Brake device adopts double pawl, so it is durable, safe and reliable.
The handle design of bi-directional ratchet, the handle can be reciprocating operation during up and down.
Design of brake and clutch device, when there’s no load, the position will be in the middle.
Can be hand chain and it can improve the work efficiency.



Characteristic
 1. Structure of advanced, safe, reliable, durable
 2. High efficiency, easy operation, comfort
 3. Small size, light weight, easy to carry

 4. All structural steel
 5. super alloy chain
 6. All of gears
 7. gear and rotating the shaft has bearings or bushings
 8. Product surface after spray treatment

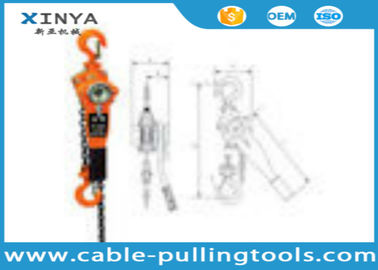

Technical Data

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting 0

Manual lever block.pdf

Model   0.75ton 1.5ton 3ton 6ton
Capacity(t)   0.75 1.5 3 6
Standard Lift(m)   1.5 1.5 1.5 1.5
Running test Load(t)   9.2 18.4 36.8 73.5
Effort required to lift max load(N)   148 216 336 345
Chain diameter(mm)   6.3 7.1 9 9
Net Weight(kg)   6.6 11.65 21.1 23.7
Dimensions(mm) A 155 170 198 198
  B 128 147 182 230
  C 310 350 470 590
  D 240 365 365 365
  G 28 36 47 49



Package

0.75 - 6 Ton Chain Lever Hoist Chain Pulley Block For Lifting and Hoisting 1
