5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm

China 5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm supplier
5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm supplier 5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm supplier

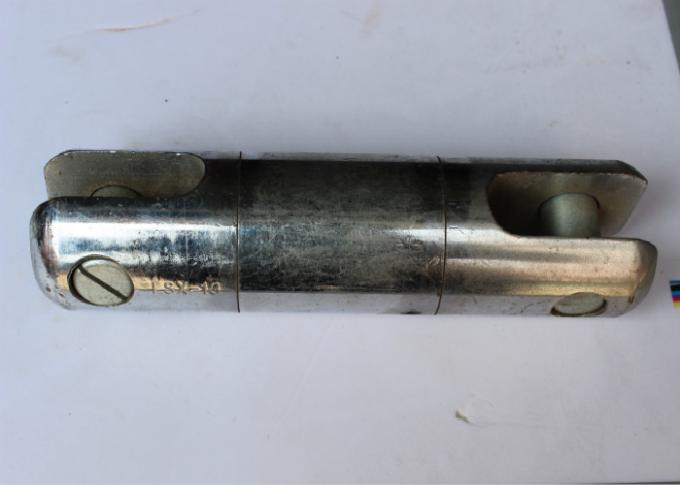

Large Image :  5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm

Product Details:

Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SWL-5

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: get latest price
Packaging Details: carton
Delivery Time: 10-15 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/week
Contact Now
Detailed Product Description
Usage: Pulling Wire Rope Rated Load: 50KN
Application: Power Construction Weight: 1.5kg
Type: Swivel Connector Product Name: Swivel Steel Cable Connector
Material: Steel Selling Point: High Strength

5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm

Specifications
1. made of top-quality steel and with heat treatment
2. small and can go through various pulley
3. safety,simple



swivel connector for pilot wire
1. made of top-quality steel and with heat treatment;
2. small and can go through various pulley

Application
used to connect conductors and steel reinforced Aluminum strand with pulling wire rope.

Features
1. made of top-quality alloy steel through heat treatment
2. small and can go through various pulleys.
3. can release the torque of the steel wire rope.


Technical Data

Product No. Model Type Rated Load(KN) Outter Diameter(mm) Groove Width(mm) Weight(kg)
80202 XL-1 5 Φ18 8 0.2
80203 XL-2 10 Φ22 12.5 0.4
80204 XL-3 30 Φ30 14.5 0.65
80205 XL-4 50 Φ42 17 1.5
80206 XL-5 80 Φ55 22 2.75
80207 XL-6 130 Φ60 24 3.5
80208 XL-7 180 Φ72 30 4.2
80209 XL-8 250 Φ85 36 5.5


5 Ton High Strength Swivel Cable Connector for Pulling Wire Rope 16mm
