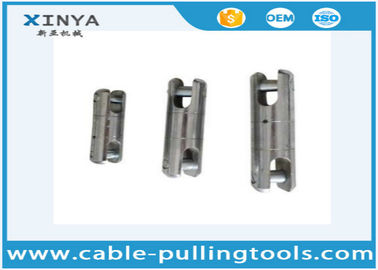

High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity

High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity
High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity

Large Image :  High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SWL-13
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD12-33/pc
Packaging Details: carton
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000pcs/week

High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity

Description
Groove Width: 8 - 36mm Application: Line Transmission
Outter Diameter: 18 - 85 Mm Weight: 3.5kg
Rated Load: 130KN Material: Alloy Steel
Selling Point: High Strength Product Name: High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity
Type: Steel Rotating Electric Cable Connector
High Light:

block and tackle hoist

,

wire rope pulley block

High Strength Light Weight Steel Rotating Electric Cable Connector With 13T Capacity





Product Description

The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor,

they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation.

They are made of highly tensile galvanized steel, the special design can bear the high radial loads,

which occur during the passage over the pulleys.

In the process of transmission line, the Rotating Wire Connector is used to connect the steel wire and net sleeve connector when tow the wire or underground cable ,

in order to release the twisting of steel wire rope.



Application

In transmission line, traction of wire or underground cables, the Steel Cable high strength Swivel connector is used to  connect with the net sleeve and wire rope, in order to release wire rope twisting.

It adopts alloy tool steel.



Features

It is high strength, light weight,

and it can smoothly go through the machine traction pulley and the tension machine.



Technical Data

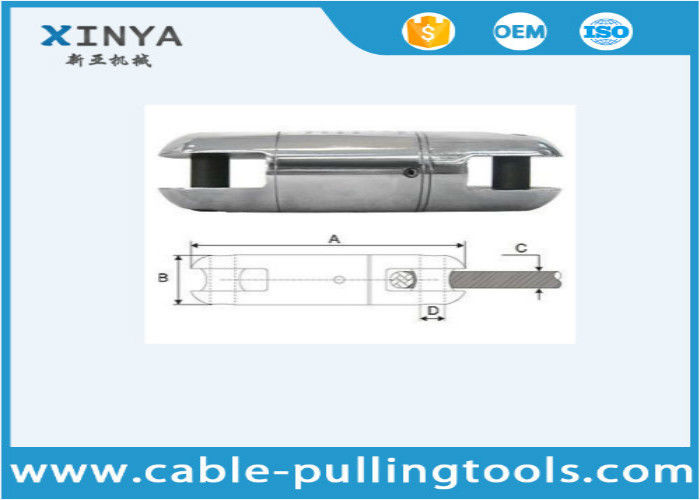

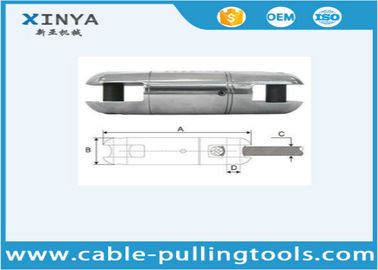

Product No. Model Type Rated Load(KN) Outter Diameter(mm) Groove Width(mm) Weight(kg)
80203 SLX-1 10 Φ22 12.5 0.4
80204 SLX-3 30 Φ30 14.5 0.65
80205 SLX-5 50 Φ42 17 1.5
80206 SLX-8 80 Φ55 22 2.75
80207 SLX-13 130 Φ60 24 3.5
80208 SLX-18 180 Φ72 30 4.2
80209 SLX-25 250 Φ85 36 5.5
