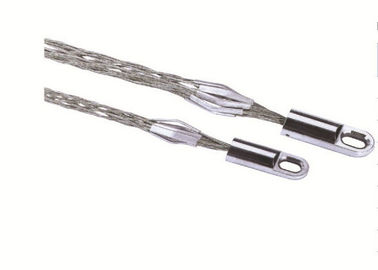

Heavy duty steel cable pulling grips wire mesh sock for power construction

Heavy duty steel cable pulling grips wire mesh sock for power construction
Heavy duty steel cable pulling grips wire mesh sock for power construction Heavy duty steel cable pulling grips wire mesh sock for power construction

Large Image :  Heavy duty steel cable pulling grips wire mesh sock for power construction

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: DWL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: get latest price
Packaging Details: standard export wooden case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Piece/Pieces per Week

Heavy duty steel cable pulling grips wire mesh sock for power construction

Description
Weight(KG): 2.4 - 3. 6 Range Of Application(mm): Less Than Or Equal To 60 - 150
Material: Cable Sock Stocking Application: Power Construction
Rated Load(KN): 25-80 Name: Heavy Duty Stainless Steel Cable Pulling Grips For Power Construction
High Light:

block and tackle hoist

,

cable hoist puller

Heavy duty steel cable pulling grips wire mesh sock for power construction



Product Information

Cable Grip generally used in the same applications as the double eye grip, however more suited when hauling cable through conduits.
This style allows the grip to be passed through so as to secure the grip at any point along the cable. It is also used as a strain relief. The cable sock is manually slipped on to the end of the cable and the winch rope attached.On applying tension the sock shrinks diametrically until a firm grip is obtained onto the cable. Care must be taken when using this method to ensure that pulling tension is not excessive, otherwise sheath stretch may result.



Application of Cable Grip

1, Telecom cable
2, Fiber cable
3,Coaxial cable
4, Feeder cable
5, Hybrid cable
6, Corrugated cable
7, Smooth cable
8, Braid cable



Characteristic

It is knitted by joint capital steel wire .

It has good softness.

It is easy to extend and contract.



Details

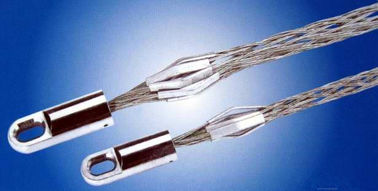

Heavy duty steel cable pulling grips wire mesh sock for power construction 0

Heavy duty steel cable pulling grips wire mesh sock for power construction 1

Specification



Model

Size Range

(mm)

Mesh Length

(mm)

Total Length

(mm)

Breaking

(KN)

Strength

(KG)

MG-5 4-6 140 200 0.981 100
MG-10 7-12 200 270 5.88 600
MG-15 13-18 270 350 8.82 900
MG-20 19-24 300 400 11.8 1200
MG-30 25-34 420 550 15.6 1592
MG-45 35-48 520 650 29.4 3000
MG-60 49-60 680 820 39.2 4000
MG-75 60-75 800 950 43.2 4408
MG-90 75-90 950 1120 49 5000
MG-105 90-105 970 1290 49 5000
MG-135 110-135 1200 1350 58.8 6000
MG-150 130-150 1320 1500 58.8 6000
MG-180 150-180 1500 1750 78.4 8000
MG-230 180-230 1850 2100 78.4 8000
MG-280 230-280 1950 2200 88.2 9000
MG-320 280-320 2000 2300 88.2 9000



Range of aplication

Heavy duty steel cable pulling grips wire mesh sock for power construction 2

Related products

Heavy duty steel cable pulling grips wire mesh sock for power construction 3

Company Equipment

Heavy duty steel cable pulling grips wire mesh sock for power construction 4

Contact Us To Get E-Catalog.

Accept OEM.

1. With flesibility,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easiky,it will not hurt the cable.
2. Cable mesh grip is the mesh structure,more drawing and more tightly,only need to stay in the opposite direction to promote network,cable can be easily wear into or take the cable.
3. Using Swedish ALURIT hydrailic press to press at the pressure point of cable mesh,smooth appearance,large tensile load strength.
4. The material can be hot dip galvanized high strength steel wire rope,304,316 or 316L.
Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.
