Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project

Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project
Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project

Large Image :  Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project

Product Details:
Place of Origin: Jianmgsu, China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YQ40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: latest price
Packaging Details: standard export wooden case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 5 Set/Sets per Month

Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project

Description
Maximum Linepull (kN): 40 Continuous Linepull (kN): 35
Bullwheel Bottom Of Groove Diameter(mm): Φ400 Bullwheel Grooves Number: 7
Dimensions (mm): 3500×2000×2300 Selling Point: Hydraulic Cable Puller
MOQ: 1 Set Warranty: 1 Year
High Light:

cable stringing equipment

,

conductor stringing equipment

Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project



Application

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Performance parameter

Max intermittent pulling force :40KN

Max continous pulling force:30KN

Corresponding speed:2.5km/h

Max continous pulling speed:5km/h

Corresponding pulling force:20KN



Structure parameter

Puller wheel diameter:400mm

Groove number:7

Max diameter of applicable steel wire rope :16mm

Diesel Power:77KW

Overall dimension (length*width*height):3600×2600×2200mm

Total weight:3500kg



Main configurations

Engine:Cummins

Main pump: German Rexroth

Main moter  speed reducer :German Rexroth

Tail bracket hoisting motor:American Eton

Hydraulic meter: German



Technical Data

Hydraulic puller.pdf

 Performance parameter  Max intermittent pulling force   40KN
   Max continous pulling force  30KN
   Corresponding speed  2.5km/h
 Structure parameter  Puller wheel diameter  400mm
   Groove number   7
   Max diameter of applicable steel wire rope  16mm
 Main comfigurations  Engine   Cummins
   Main pump  German Rexroth
   Main moter  speed reducer  German Rexroth



Practical Application

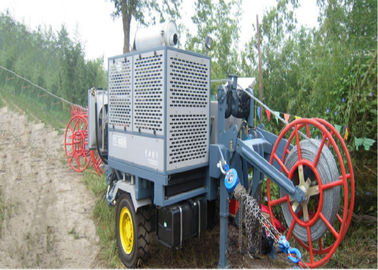

Cable Pulling Tools 40KN Hydraulic Cable Puller During Overhead Stringing Project 0
