Product Details:
|
| Maximum Linepull (kN): | 180 | Continuous Linepull (kN): | 150 |
|---|---|---|---|
| Maximum Linespeed (km/h): | 5 | Bullwheel Bottom Of Groove Diameter(mm): | Φ630 |
| Weight (kg): | 7500 | Type: | Overhead Stringing Equipment |
| Usage: | Overhead Line Transmission | Engine: | Cummins |
| Groove Number: | 10 | ||
| High Light: | cable stringing equipment,conductor stringing equipment |
||

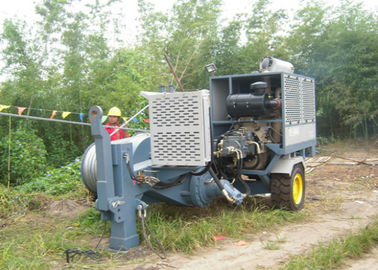

SA-YQ180 Overhead Stringing Equipment 180KN Electric Wire Puller
Application
The machine allows for the tension stringing of 4-bundle conductor of 630mm2
and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2
and below in flat lands; besides,
it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains.
Feature
Performance parameter
Max intermittent pulling force :180KN
Max continous pulling force:150KN
Corresponding speed:2.5km/h
Max continous pulling speed:5km/h
Corresponding pulling force:75KN
Structure parameter
Puller wheel diameter:700mm
Groove number:10
Max diameter of applicable steel wire rope :27mm
Electric systerm:24V
Max diameter of applicable wire coil:1400mm
Total weight:6800kg
overall dimension:4300×2360×2380mm
Main comfigurations
Engine:Cummins
hydraulic pump:German Rexroth
Main moter:German Rexroth
speed reducer :German Rexroth
Hydraulic meter: German
Technical Data
|
Performance parameter |
Max intermittent pulling force | 180KN |
| Max continous pulling force | 150KN | |
| Corresponding speed | 2.5km/h | |
|
Structure parameter |
Puller wheel diameter | 700mm |
| Groove number | 10 | |
| Max diameter of applicable steel wire rope | 27mm | |
|
Main comfigurations |
Engine | Cummins |
| Hydraulic pump |
German Rexroth |
|
| Hydraulic meter | German |
