Product Details:
|
| Type: | Hydraulic Cutting Tools, Hydraulic Cable Cutter | Application: | Cutting |
|---|---|---|---|
| Cutting Force(KN): | 60-120 | Weight(KG): | 4.2-8.7 |
| Condition: | New | ||
| High Light: | construction hand tools,building construction tools |
||
Cutting force 60-120 KN Hydraulic Cable Cutter in High Efficiency
Use and Characteristic
1 The tool features a double apeed action:a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for cutting.
2 For ease of operation and comfort the operator the tool head can be fully rotated through 360 degrees.
The built in safety valve will bypass the oil supply when the maximum pressure is reached,and the pressure release system can easily be operated at any stage of compression.
3 With interchangeable dies.
4 Steel cutting heads which can be mounted in the most convenient position for the user working in difficult locations such as shafts or towers.
5 Easy to replace blades.
6 Spring return in single acting model.
Carrying box for protection and ease of transport.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Hydraulic Cable Cutter

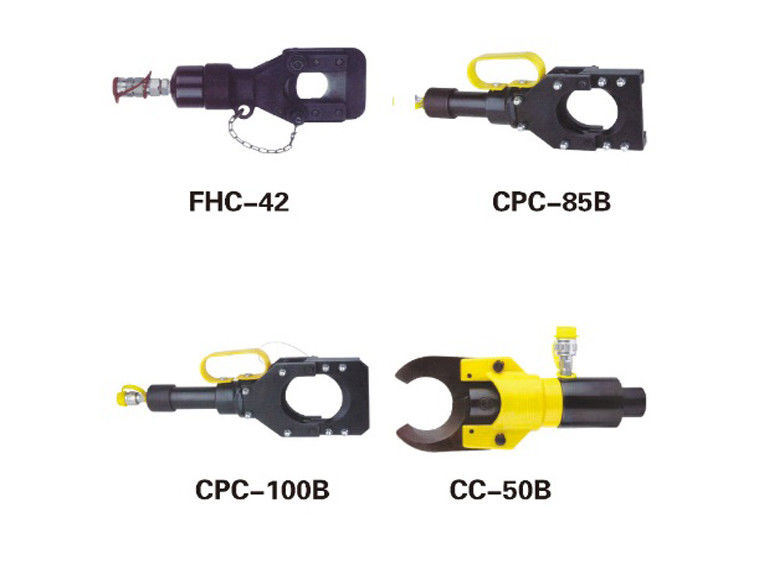

| Product No. | Model Type | Cutting Force(KN) | Length(mm) | Cutting Rang | Weight(KG) |
| 80253 |
FHC-42 |
60 | 340 | steel aluminum core armored cableΦ45mm | 4.2 |
| 80254 | CPC-85B | 75 | 465 |
telephone cableΦ85mm; steel aluminum core armored cableΦ50mm |
8.2 |
| 80255 | CPC-100B | 75 | 515 |
telephone cableΦ100mm; steel aluminumcore armored cableΦ75mm |
8.7 |
| 80256 | CC-50B | 120 | 340 |
telephone cableΦ50mm; steel aluminum core armored cableΦ45m |
