Product Details:
|
| Maximum Tension(kN): | 2×30 Or 1×60 | Continuous Tension(kN): | 2×25 Or 1×50 |
|---|---|---|---|
| Maximum Speed (km/h): | 5 | Number Of Grooves: | 2×5 |
| Engine Power /speed (kW/rpm): | 38/2500 | Dimensions (mm): | 4100 × 2100 ×2600 |
| Weight(kg): | 4000 | ||
| High Light: | tension stringing equipment,cable puller tensioner |
||

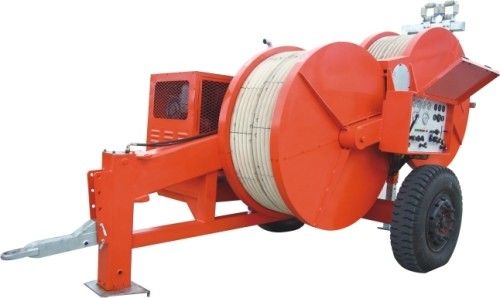

Cable Tensioners SA-YZ2×30 60KN Hydraulic Tensioner Two Bundle Conductor
Product Introduction
The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.
We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.
Application
Tension machine is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects , the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure the safety of construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
|
Maximum Tension(kN) |
2×30or 1×60 |
|
Continuous Tension(kN) |
2×25 or 1×50 |
|
Maximum speed (km/h) |
5 |
|
Number of grooves |
2×5 |
|
Bullwheel bottom of groove diameter (mm) |
Φ1200 |
|
Maximum pullback (kN) |
2×30 or 1×60 |
|
Maximum speedback (km/h) |
2×1.2 |
|
Maximum suitable conductor diameter (mm) |
Φ32 |
|
Engine power /speed (kW/rpm) |
38/2500 |
|
Dimensions (mm) |
4100 × 2100 ×2600 |
|
Weight(kg) |
4000 |
Feature
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. attached two sets of hydraulic power output interface to connect hydraulic reel stand .
Main component
1.Engine :Chinese famous brand air–cooled engine
2.main pump and main motor Rexroth (BOSCH )
3.Reducer : RR(Italian)
4.hydraulic valve : Rexroth (BOSCH )
5.radiator :AKG
6.draulic instrument :
