Product Details:
|
| Maximum Tension(kN): | 2×40 Or 1×80 | Continuous Tension(kN): | 2×35 Or 1×70 |
|---|---|---|---|
| Maximum Speed (km/h): | 5 | Engine Power /speed (kW/rpm): | 51/2500 |
| Dimensions (mm): | 4500 ×2200 ×2800 | Weight(kg): | 4850 |
| Product: | Hydraulic Cable Tensioner | Warrranty: | 1 Year |
| High Light: | hydraulic cable tensioner,cable puller tensioner |
||

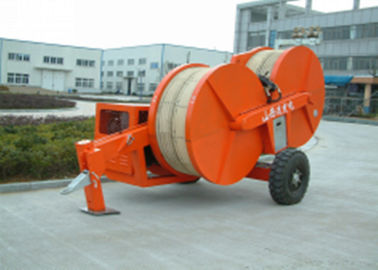

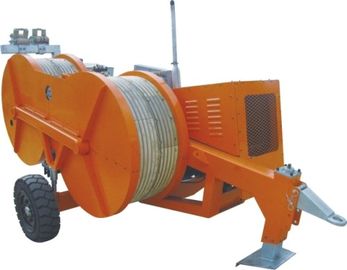

2x40KN Hydraulic cable tensioner Wire Tension Device for overhead transmission Line Conductor
Product Introduction
The overhead transmission line tension stringing equipments are widely used in overhead transmission Line Conductor or OPGW tension stringing project. We are the only one to supply whole set of stringing equipment and tools for transmission line construction in China.
We could supply whole set of stringing equipment and tools for transmission line up to 1000KV construction.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Characteristic
1. Bullwheel with wearproof MC nylon lining segments.
2.Infinitely variable tension control and constant tension conductor stringing
3.Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety
4.attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand .
Main component
1. Engine :Deutz air-cooled diesel engine.
2. main pump and main motor :Rexroth (BOSCH )
3. Reducer : R.R(Italian )
4. Main hydraulic valve :Rexroth (BOSCH )
5. Radiator :AKG
6. Hydraulic instrument :
7. it can choose the Chinese air-cooled engine .the model is SA-YZ2×40B
8. according to needing,it can configure mobile control consoles , it easy for one operator to control 2 machines simultaneously ,which facilitates 4-conductor–stringing operation using two machines .the control consoles order number is :07193
Technical Data
| Maximum Tension(kN) | 2×40 or 1×80 |
| Continuous Tension(kN) | 2×35 or 1×70 |
| Maximum speed (km/h) | 5 |
| Bullwheel bottom of groove diameter (mm) | Φ1500 |
| Number of grooves | 2×5 |
| Maximum pullback (kN) | 2×40 or 1×80 |
| Maximum speedback (km/h) | 2×1.2 |
| Maximum suitable conductor diameter (mm) | Φ40 |
| Engine power /speed (kW/rpm) | 51/2500 |
| Dimensions (mm) | 4500 ×2200 ×2800 |
| Weight(kg) |
4850 |
