Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Tight Wire | Rated Load: | 40KN |
| Max Open: | 32mm | Weight: | 4.0kg |
| High Light: | block and tackle hoist,wire rope pulley block |
||

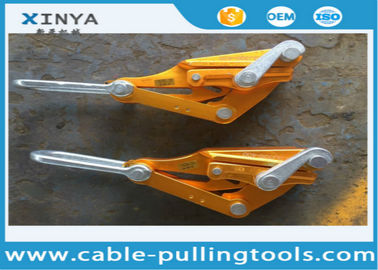

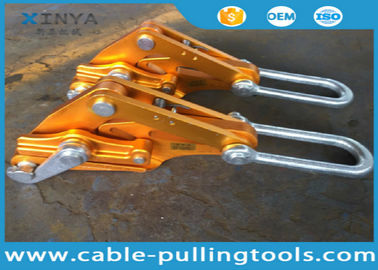

Transmission Line Stringing Tools 300-400 sqmm Aluminum Alloy Grip Come Along Clamp for ACSR AAAC Conductor
Quick Infomation
1. Material: Al or steel
2. Apply to Al, ACSR, Cu Conductor
3. Size: 25~1120mm2
4. Rated load 7~80kN
Use and Characteristic
Aluminum Alloy Wire Grip Self Gripping Clamp For Insulated Wire is suitable to tighten the Insulated conductors or adjust of sag.
With high stength aluminum titanium alloy forging, the weight is light.
The jaw part adopts a special texture processing so that
it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Feature
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
