Product Details:
|
| Weight: | 3.2- 5.2 Kg | Wire Length: | 1210- 2000 Mm |
|---|---|---|---|
| Rated Load: | 1 - 3 T For Wire Rope Puller | Application: | Tight Line |
| Type: | Ratchet Tightener | Selling Point: | Cable Puller |
| High Light: | construction hand tools,basic hand tools |
||

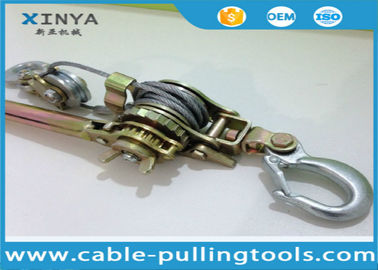

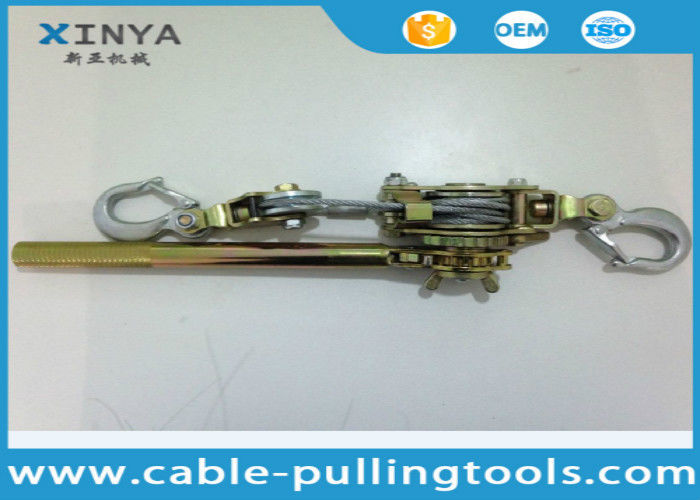

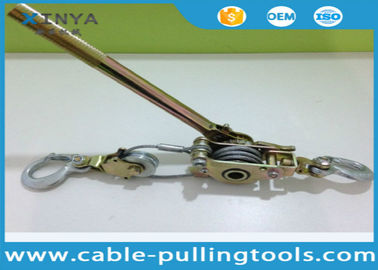

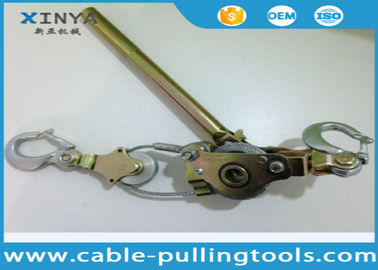

1 Ton Double Hook Wire Rope Puller Cable Puller for Tightening Wire
Application
Cable Puller Winch,Cable Puller,Cable Puller Winch is used in power transmission construction, telecommunications engineering, tighten the wire.
Designed for conductor/cable tensioning applications within the Electricity distribution and Telecommunication industry.
Characteristic
1. Forward/reverse load holding mechanism
2. Heavy duty - Quality ratchet mechanism
3. 360º Handle movement
4. Fast advance mechanism
5. Supplied with Test Certificate
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Max Length(mm) | Min Length(mm) | Weight(kg) |
| 80152 | P-1000 | 10 | 1210 | 410 | 3.2 |
| 80153 | P-1500 | 15 | 1500 | 480 | 4.2 |
| 80154 | P-1500A | 15 | 2000 | 480 | 4.7 |
| 80155 | P-2000 | 20 | 1500 | 480 | 4.8 |
| 80156 | P-3000 | 30 | 1500 | 510 | 5.2 |
