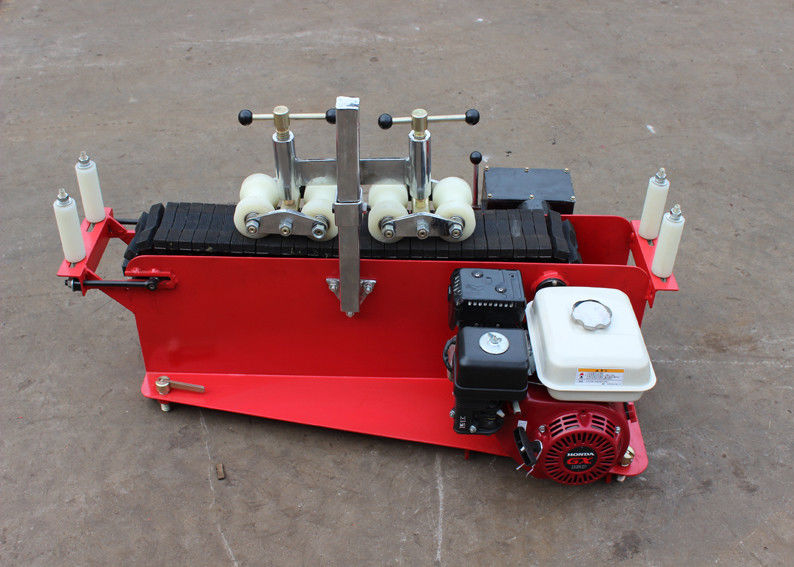

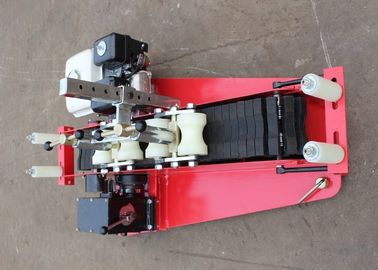

Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine

Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine
Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine

Large Image :  Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: DSJ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1500-2600/set
Packaging Details: standard export wooden case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month

Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine

Description
Capacity: 1KN Push Force: 500KG
Weight: 77kg Oversize Dimension: 1050*250*360 Mm
Application: Power Construction Power Source: Honda Gasoline Engine
Type: Cable Laying Machine
High Light:

cable laying equipment

,

cable tower machine

Honda Gasoline Engine Cable Puller Winch for Small Diameter Cable Layout



Application

Motorize Steel Belt Conveyor  is applicable to cablecasting ,especially long distance cablecasting.

Motorize Steel Belt Conveyor  can work without power supply,save labor and time.



Features

1. It can reduce the tension of traction device in the cable wiring.

2. With reinforced steel bottom structure.

3. With high strength nylon track.

4. With a pair of nylon pulley to protect the cable.



Technical Data

Model NO. Push speed(m/min) Range(mm)  Push Force(KN) Demension(mm)  Weight(kg)
 DSJ-180  25  Ø60-Ø150  1 1050*250*360  77




Motorize Cable Push Pulling Transmit Machine Underground Cable Tools with Honda Engine 0
