Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller

Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller
Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller

Large Image :  Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: get latest price
Packaging Details: packed with carton
Delivery Time: 10-15 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Piece/Pieces per month

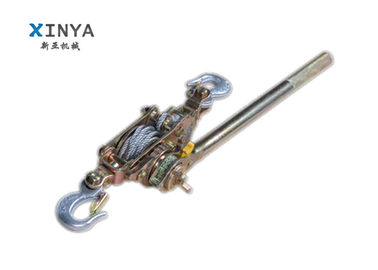

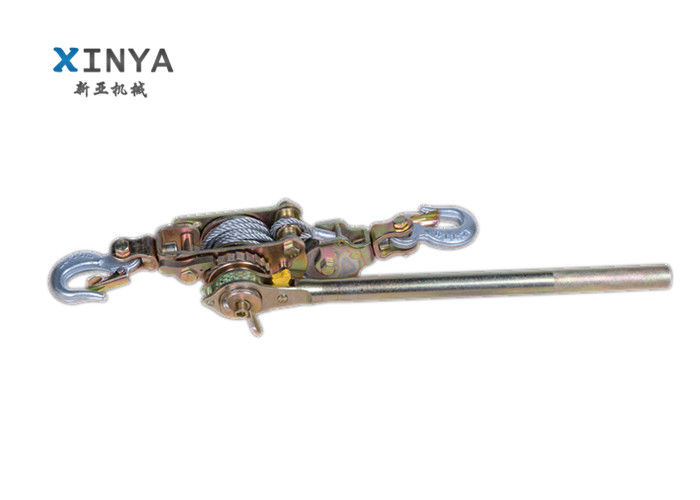

Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller

Description
Usage: Tightening Weight: 4.8 Kg
Rated Load: 2T Application: Tight Line
Type: Ratchet Tightener Selling Point: Cable Puller
High Light:

construction hand tools

,

building construction tools

Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller

Introduction
Tight line device is installed in the construction of overhead lines as tension conductors. Use first device on the tight wire or galvanized wire rope loose, and fixed in the cross arm, and with the clamp tool clamping wire, then pulling the special spanner. As the pawl anti-reverse effect, and gradually the rope, or galvanized iron wire on the ratchet drum, so that the wire to tighten. To tighten the wire fixed on the insulator. Then loosen the pawl, so that loose wire or galvanized wire, then release the clamp tool, and finally the wire or galvanized iron wire on the ratchet drum.
Tight line device applications: construction, roads, bridges, metallurgy, mining, slope tunnels, wells and other infrastructure construction management protection of mechanical equipment.


Application
Hand Winch Cable Puller Wire Rope Puller  is used in power transmission construction, telecommunications engineering, tighten the wire.
Designed for conductor/cable tensioning applications within the Electricity distribution and Telecommunication industry.

Characteristic
Forward/reverse load holding mechanism
Heavy duty - Quality ratchet mechanism
360º Handle movement
Fast advance mechanism
Supplied with Test Certificate

Features
1. It has small size and light weight and convenient collection and easily carried. Its ability on operate can play its role even in a narrow place.
2. The ratchet puller is made by high quality of Taiwan galvanized wire rope and aluminum alloy pressure head. It’s strong and wearable, not fall off.
3. It is made by high tensile steel plate and the structure is used in high quality integral structure of carbon steel, then matching with the high density gear, which can rotate 360 degrees direction. The controlling keying can forward or backward turn. It is attached automatic braking device to save effort. It is suitable for electric power, telecom high homework. It is powerful and not easy to break.
4. With high tensile steel hook with latch, the strength gets greatly improved.
5. Material: High Tensile Carbon Steel
6. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
7. Finish: color zinc plated

Certification
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.

Technical Data

Product No.Model TypeRated Load(KN)Max Length(mm)Min Length(mm)Weight(kg)
80152P-10001012104103.2
80153P-15001515004804.2
80154P-1500A1520004804.7
80155P-20002015004804.8
80156P-30003015005105.2


Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller 0

Application
Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller 1
Package
Basic Construction Tools 2T Ratchet Cable Puller Wire Rope Puller 2
