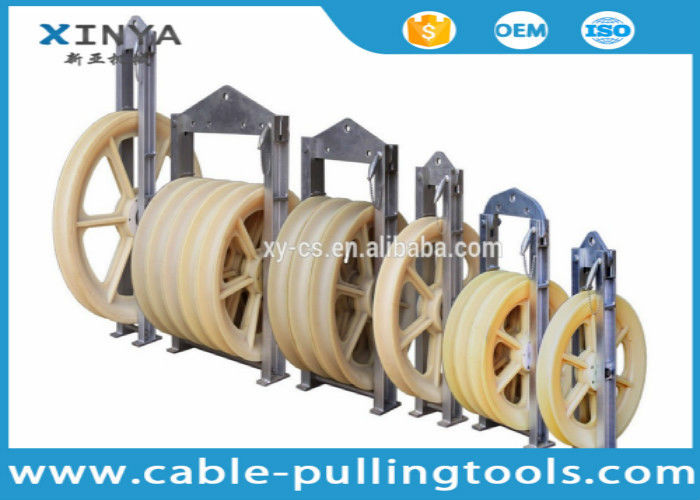

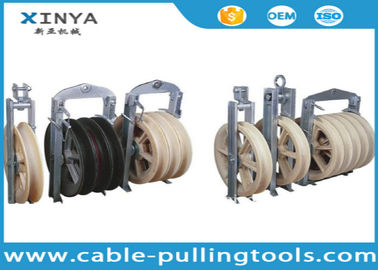

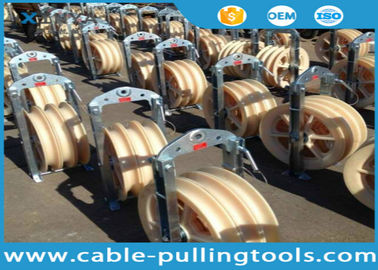

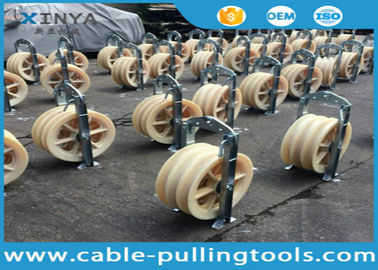

Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block

China Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block supplier
Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block supplier Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block supplier Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block supplier Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block supplier

Large Image :  Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block

Product Details:

Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: FH

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: 1000 sets per month
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Diameter: 916mm Width: 110mm
Material: Nylon Selling Point: Large Diameter
Conductor Size (mm2): ≤800 Weight (kg): 100

Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block



Quick details:
1. Diameter: 916mm
2. Width: 110mm
3. Transmission Line Stringing Accessories
4. Conductor/Cable/OPGW Bundled Conductor Pulley
5. Three Wheels Nylon Wheels
6. Galvanized Steel Frame
7. With Rubber Covered or Without
8. Rated Load: 80kN

9. Boyu Brand



Specification:

Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.

Model

Wheel size Diameter x Width (mm)

Conductor size (mm2)

Rated load (kN)

Weight (kg)

Wheel material

SHD-120X30

120x30

25~70

5

2.1

Aluminum

SHD-160X40

160X40

95~120

10

3.1

SHD-200X40

200X40

150~240

15

3.7

SHD-200X60

200X60

150~240

15

4.1

SHD-250X40

250X40

150~240

20

5.1

SHD-250X60

250X60

300~400

20

5.4

SHD-270X60

270X60

300~400

20

6.7

SHD-320X60

320X60

300~400

20

10.4

SHD-400X80

400X80

400~500

20

11.9

SHDN-120X30

120x30

25~70

5

1.5

Nylon

SHDN-160X40

160X40

95~120

10

2.3

SHDN-200X40

200X40

150~240

15

2.5

SHDN-200X60

200X60

150~240

15

3.0

SHDN-250X40

250X40

150~240

20

3.6

SHDN-250X60

250X60

300~400

20

3.8

SHDN-270X60

270X60

300~400

20

4.3

SHDN-320X60

320X60

300~400

20

7.5

SHDN-400X80

400X80

400~500

20

8

SHD-508X75

508X75

≤400

20

22.3

Aluminum

SHD-660X100

660X100

≤500

20

30

SHDN-508X75

508X75

≤400

20

18

Nylon

SHDN-660X100

660X100

≤500

20

20

SHDN-830X110

830X110

≤630

30

25

SHDN-916X110

916X110

≤800

50

45

SHDN-1040X125

1040X125

≤1000

55

105



Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.

Model

Wheel size Diameter x Width (mm)

Conductor size (mm2)

Rated load (kN)

Weight (kg)

Wheel material

SHS-508X75

3X508X75

≤400

40

85.5

Middle steel

Two Nylon

SHS-660X100

3X660X100

≤500

20

106

SHSN-508X75

3X508X75

≤400

40

60

Nylon

SHSN-660X100

3X660X100

≤500

40

85

SHSN-830X110

3X830X110

≤630

60

100

SHSN-916X110

3X916X110

≤800

80

140

SHSN-1040X125

3X1040X125

≤1000

110

210



Five Wheels-The pulleys are suitable for string four bundled conductor lines.

Model

Wheel size Diameter x Width (mm)

Conductor size (mm2)

Rated load (kN)

Weight (kg)

Wheel material

SHW-508X75

5X508X75

≤400

40

85.5

Middle steel

Two Nylon

SHW-660X100

5X660X100

≤500

40

106

SHWN-508X75

5X508X75

≤400

40

60

Nylon

SHWN-660X100

5X660X100

≤500

40

85

SHWN-830X110

5X830X110

≤630

60

100

SHWN-916X110

5X916X110

≤800

80

140

SHWN-1040X125

5X1040X125

≤1000

110

210



Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block
