3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing

3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing
3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing 3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing

Large Image :  3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JJM3Q
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: US $1,150 - 1,850 / Set
Packaging Details: Carton or wooden case
Delivery Time: 5 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 set/sets per month

3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing

Description
Power Source: Gasoline Application: Power Construction
Capacity: 30KN Material: Steel
Power: 7HP Dimension(mm): 850*450*500
Weight(kg): 80 Max Pulling Speed: 30m/min
Product Name: 3 Ton 600 Diameter Cable Capstan Pulling Winch With Yamaha Gasoline Engine Selling Point: 600 Diameter Cable Capstan
High Light:

gasoline powered winch

,

engine powered winch

3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing





Brief Introduction

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical  shape and coming with steel rope.



Features

small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

light weight.

For example, the weight of 3 Ton Cable Drum Winch Manufacturer with Yamaha Gas Engine Powered  is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

high efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3Q Petrol engine 7HP Slow  9 1.8
Quick  30 1.0
Reverse 3.5

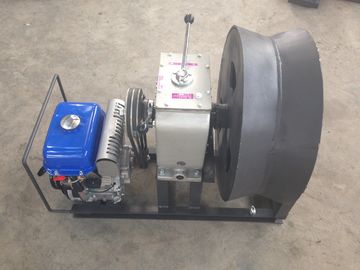

3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing 0

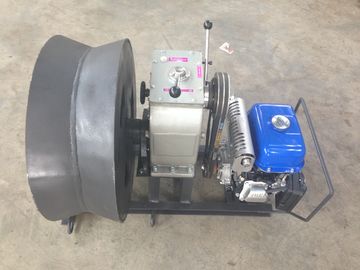

3 Ton 600 Diameter Cable Capstan Pulling Winch with Yamaha Gasoline Engine for Cable Stringing 1
