Product Details:
|
| Usage: | Tightenning | Application: | Adjust Sag |
|---|---|---|---|
| Material: | Tight Wire | Type: | Wire Rope Clip, Wire Grip |
| Name: | Wire Grip Clamp | Selling Point: | Aluminum Wire Grip Clamp |
| High Light: | gin poles,lattice poles |
||

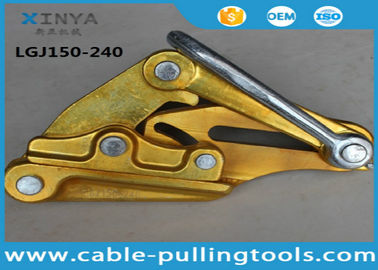

30KN Aluminum alloy Wire Pulling Grip Clamp for 150-240mm2 ACSR Conductor
Use and Characteristic
Aluminum Alloy Wire Grip Self Gripping Clamp For Insulated Wire is suitable to tighten the Insulated conductors or adjust of sag.
With high stength aluminum titanium alloy forging, the weight is light.
The jaw part adopts a special texture processing so that
it can firmly clamp the cable and does not hurt the inner core whether winter or summer.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1 Take First-Class Quality as Target and First-class Service.
2 As Responsibility, To Succeed By Scientific Management.
3 Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model Type | Rated Load(KN) | Adapt wire(mm2) | Open(mm) | Weight(kg) |
| GK-1 | 8 | 25-70 | 13.5 | 1.4 |
| GK-2 | 16 | 95-120 | 17.5 | 2.1 |
| GK-3 | 30 | 150-240 | 24 | 3 |
| GK-4 | 42 | 300-400 | 32 | 4 |
| GK-5 | 50 | 500-630 | 37 | 7 |
| GK-6 | 70 | 720-830 | 40 | 9.5 |
