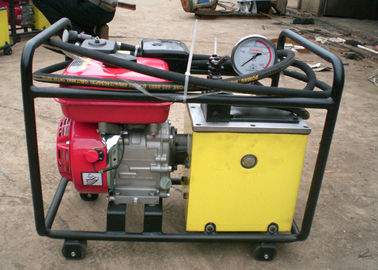

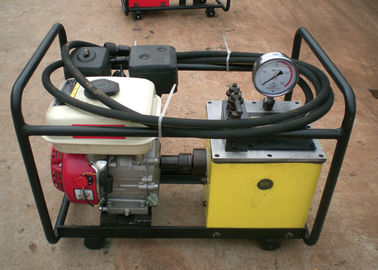

High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool

High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool
High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool

Large Image :  High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JYB-80Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD700-1000/set
Packaging Details: standard export wooden case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/week

High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool

Description
Fuel: Gasoline Rated Flow: 1.6L/min
Max Output Pressure: 100Mpa Application: Power Supply
Motor Power: 1.5kw Rated Pressure: 80Mpa
Pressure: High Pressure Key Word: High Pressure Pump
High Light:

block and tackle hoist

,

wire rope pulley block

80Mpa High Pressure Hydraulic Oil Pump With Petrol Engine For Power Supply



Application

Application of Yamaha Hydraulic Pump: to provide power for the cutting tool, the hydraulic compressor, punching machine

and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.



Features

1 Easy to operate and high safty

2 Precise Machining Technique

3 Long Life of the Machine

4 Delicate and Beautiful Appearance Design

5 Broader Applicable Scope

Good quality and less malfunction



Technical Data

Model No. JYB-100
Rated Pressure 80MPa
Max Output Pressure 85Mpa
Rated Flow 1.6L/min
Rated Input Power 1.5KW
Hydraulic Oil No.32 hydraulic oil
Oil Tank 8L
Gear Oil No.32 hydraulic oil
Engine 165F 4HP domestic engine
Weight 85 kg
Size 600*420*510



DAILY MAINTENANCE

The life,reliablity,and safety of the tool is dependent on proper maintenance.Clean all surfaces including head,die seat,ram,and body.

Inspect for wear and damage.Worn or damaged parts may malfunction during operation.

All parts must be replaced with new parts if signs of wear or damage are evident.

Keep Lable Set clean and legible.Replace decales when necessary.

Manufacturer recommends regular testing for proper pressure and operation.

Test at least every 6 months,test more often under heavy usage.



GENERAL INFORMATION

1. IMPORTANT:Extreme caution should be used to prevent the entry of this material into th unit.Wipe off all couplings and fittings before connecting to unit.Be sure that any pump to be used with the compression tool is clean and free of dirt and contamminants.

2. PERIODIC MAINTENANCE:Occasionally lubricate die stop plunger assemblies.Use of a molybdenum disulfide grease is recommended.Pull pin and pivot pin assemblies should also be cleaned and lubricated to prevent sticking.

3. Oil LEAKAGE:A small amount of seepage from the piston and pump seals is normal and necessary to aid in the lubrication of the moving parts.Excessive leakage may indicate the need for seal replacement and should be performed only by an authorized reliable service center



Practical Application



High Pressure Gasoline Engine Hydraulic Oil Pump to Provide Power for the Cutting Tool 0
