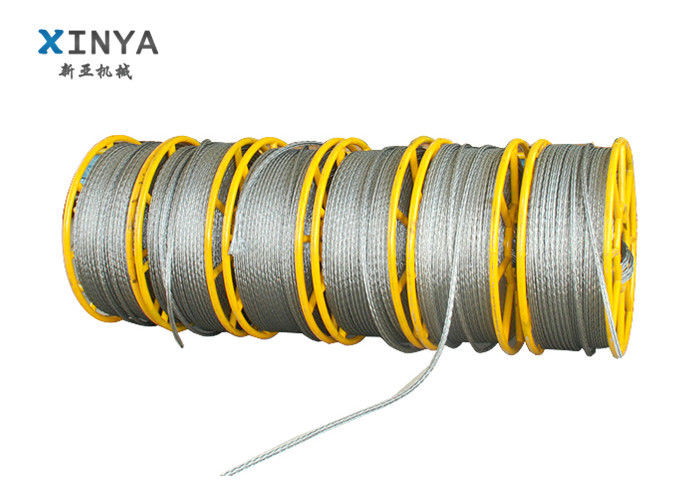

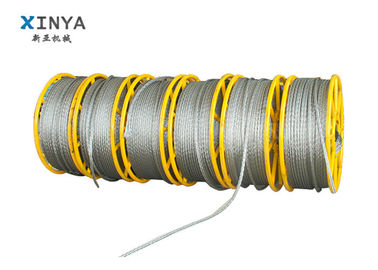

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing
Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing

Large Image :  Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing

Product Details:
Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO
Model Number: NT HT ST, Hexagon with 12 strands & 18 strands
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meters
Price: get latest price
Packaging Details: steel reel
Delivery Time: 10-15 days after total payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 meter/meters per day

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing

Description
Structure: Hexagon With 12 Strands Application: Transmission Line Stringing
Material: Steel Surface Treatment: Galvanized
Diameter: 9-30mm Item: Anti Twisted Pilot Rope Hexagon With 12 Strands Galvanized
High Light:

rotation resistant wire rope

,

non rotating wire rope

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing



Application

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.



Features

The rotation angle is zero,and the combined rotation  torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .

The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released.  You can change the length and repair local damage by grafting ,which will not reduce the flexibility.

Hexagon is more suitable for puller, tensioner,winch,  hoisting etc .



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.



Technical Data

 Model  Structure

Nominal

Dia

(mm)

Single

bundle

Dia

(mm)

 Ref

Weight

(kg/100m)



Breaking

Force(KN)

Standard

Length

(m)

HL9-12×19W Hexagon with 12 strands 9 2.0 26.69 55.0 1000
HL11-12×19W Hexagon with 12 strands 11 2.5 45.73 80.5 1000
HL13-12×19W Hexagon with 12 strands 13 3.0 57.96 120.0 1000
HL16-12×19W Hexagon with 12 strands 16 3.5 82.80 158.0 1000
HL18-12×19W Hexagon with 12 strands 18 4.0 103.82 210.0 1000
HL20-12×T25Fi Hexagon with 12 strands 20 4.5 129.62 250.0 800
HL22-12×T25Fi Hexagon with 12 strands 22 4.8 147.88 320.0 800
HL24-12×T25Fi Hexagon with 12 strands 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi Hexagon with 12 strands 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi Hexagon with 12 strands 28 6.0 230.50 480.0 500
HL30-12×T29Fi Hexagon with 12 strands 30 6.5 272.04 540.0 500
HL20-18×19W Hexagon with 18 strands 20 4.0 159.80 300.0 800
HL22-18×T25Fi Hexagon with 18 strands 22 4.2 189.80 389.0 800
HL24-18×T25Fi Hexagon with 18 strands 24 4.8 216.20 440.0 800
HL26-18×T25Fi Hexagon with 18 strands 26 5.2 276.80 480.0 700
HL28-18×T29Fi Hexagon with 18 strands 28 5.4 301.20 580.0 500
HL30-18×T29Fi Hexagon with 18 strands 30 5.6 361.60 658.0 500
HL32-18×T29Fi Hexagon with 18 strands 32 6.0 423.00 780.0 500

Note:

The single length of rope can be made according to your requirement.

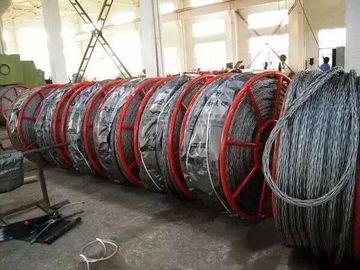

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing 0

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing 1

FAQ

1.Q:Are you a factory or trading company?

A:We are a factory.



2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jiangyin City, Jiangsu Province, China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.



3.Q:How does your factory do regarding quality control?

A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.



4.Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock, or it is 25-30 days if the goods are not in stock, it is according to quantity.



5.Q: Do you provide samples ? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



6.Q: What is your terms of payment?

A: Payment≤1000USD, 100% in advance.



Payment ≥1000USD, 30% T/T in advance, balance before shippment. If you have another question, pls feel free to contact us as below:
