Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR

Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR
Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR

Large Image :  Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: QY-300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get lastest price
Packaging Details: export standard plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/week

Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR

Description
Rated Pressure: 80Mpa Application: Crimping ACSR
Weight: 80kg Type: Hydraulic Crimping Head
Output: 300T Warranty: 1 Year
High Light:

hydraulic wire cutter

,

hydraulic crimp tool

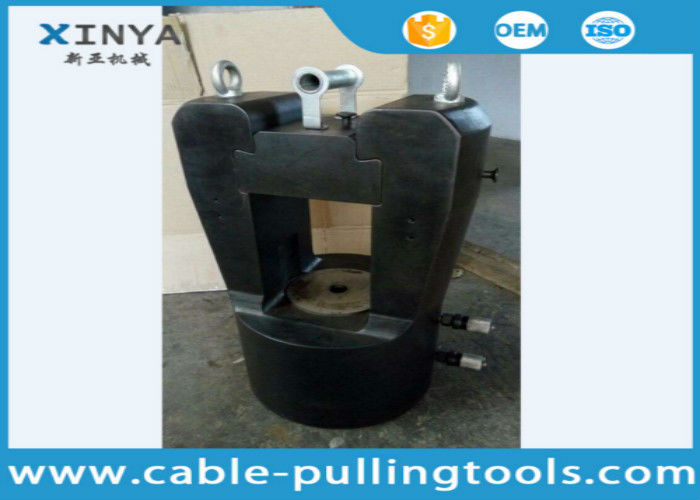

Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR





Model QY-300 Hydraulic Compressor

Item number Maximum Compression(KN) Maximum Oil Pressure(MPa) Applicable diameter(mm) Stroke(mm) Weight(kg)
1606A 3000 94

Aluminum tube≤ф100

Steel tube≤ф50

35 126

Uses:To compress conductor,earth wire and copper aluminum terminators

Feature:Drawer type structure,reasonable and compact

Notes:

1.Operated by super high pressure pump station

2.Matched pressure die QY-300M(Item number 16106G and 16106L)need to purchase additionally.

Dies specification:G-16.18.20.24.26.28.30.32.34.36.38.42.44.45.48.50

L-30.32.36.40.42.45.48.52.60.65.70.74.76.80.95



Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR 0

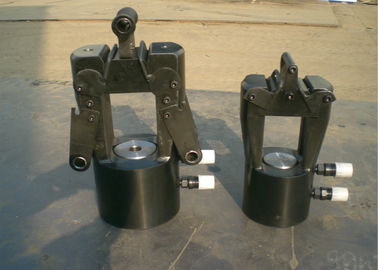

Hydraulic Compressor

Item number Model Maximum Compression(KN) Maximum oil pressure(MPa) Applicable conductor Stroke(mm) Weight(kg)
16103 QY-65 650 94 ≤ACSR500 25 25
16104 QY-125 1250 94 ≤ACSR720 25 40
16105 QY-200 2000 94 ≤ACSR1440 25 85

Uses:To compress conductor,earth wire and copper aluminum terminal.

Notes:1.Operated by super high pressure hydraulic pump station.

2.Matched compression die need to purchase additionally

3.Packaged in iron case.

Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR 1



Compression Dies

Item number Model of matched compressor Serial specification of compression die sets
16123 QY-65

L-26.28.30.32.34.36.38.40.45.50

G-12.14.16.18.20.22.24.26

Copper terminators:16-800mm²

16124 QY-125

L-26.28.30.32.34.36.38.40.45.50.52.55.60

G-12.14.16.18.20.22.24.26

Copper terminators:16-800mm²

16125 QY-200

L-26.28.30.32.34.36.38.40.45.50.52.55.60.65.70.75.80

G-12.14.16.18.20.22.24.26.28.30.32

Copper terminators:16-800mm²

Notes:The specification of die sets is steel(G) or aluminum(L) the outside diameter of compression joint tube.The specification of the dies can be customized according to the size of the steel tube or aluminum tube for the conductor.

 Output 300 Ton 3000KN Hydraulic Compressor Hydraulic Crimping Head for ACSR 2
