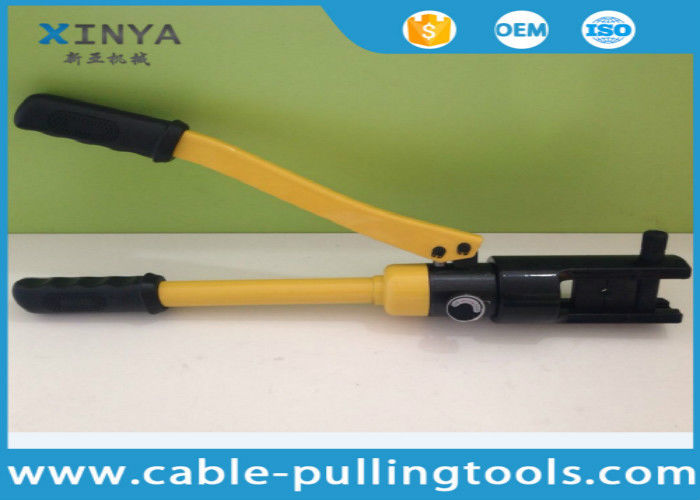

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

Large Image :  YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: YQK120
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: USD150-300/pc
Packaging Details: export standard plywood case
Delivery Time: 100sets/week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/Week

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

Description
Output: 160KN Working Stroke: 22mm
Crimping Range: 16-300mm2 Weight: 8.0kg
Application: Crimp Selling Point: 180 Degree Rotate
Name: YQK-300 Manual Hydraulic Cable Lug Crimping Tools
High Light:

hydraulic wire cutter

,

hydraulic crimp tool

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals





Characteristics

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 6,10,16,25,35,50,70,150,185,240,300mm2

Press tools is suitable for DIN.AWG.JIS.

There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

Only one person can work.

Pump is connected to the tools, it can turn 180 degree when pressed on the head.



Features

1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

3. Standard die assembling 16,25,35,50,70,95,120,150,185,240,300mm2

4.Packing case is made form robust integarl plastic box.



Technical Data

Product No. Model Type Output (KN) Crimping Range(mm2) Working Stroke(mm) Packing Term  Oil Capacity (cc) Weight(kg)
80079 YQK-300 160 300 22 plastic box 145 8.0

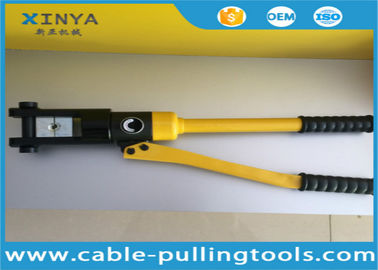

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals 0

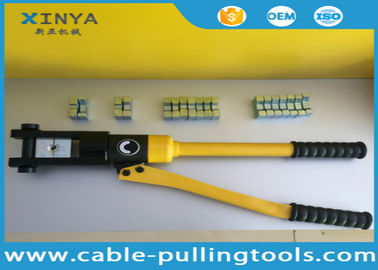

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals 1

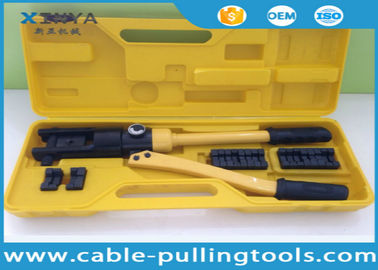

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals 2



Manual Instruction

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals 3
