DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project

DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project
DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project

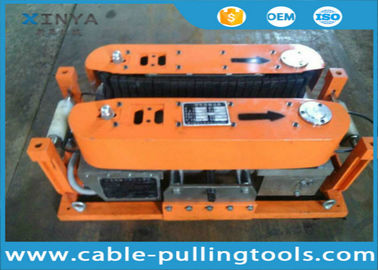

Large Image :  DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: DSJ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1500-2500/set
Packaging Details: standard export wooden case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/month

DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project

Description
Power Source: Electric Engine Pulling Speed(m/min): 6m/min
Capacity: 800kgs Rubber Sheet Thickness: 25mm
Application: Power Construction Cable Diameter: 30-200mm
Selling Point: Cable Hauling Machine Power: 1.5KW*2
High Light:

cable laying equipment

,

cable drum trailer

DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project



Application

1. Petroleum, Chemical, Industrial construction

2. Power Plant Extension

3. Long Way Laying of Cable Line

4. Conveying Power Cable

5. Other Channel, Cable Pipe

6. Substation and City Network Transmission Cable



Characteristic:

Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.Equipped with adjusted barrel, easy to operate.It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.Low noise, small temperature rise for and easy maintenance.We can provide other matching product like DSJ electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.



Technical Data

Model Type DSJ-150 DSJ-180
Line pulling(KGS) 700 800
Pulling Speed(m/min) 8 6
Electric motor 1.1KW *2 1.5KW * 2
Oversize dimension 950*500*400 1020*590*400
Weight(KGS) 150 180-200
Cable diameter Φ30 - 180 mm Φ30 - 200 mm
Transimission I=45 I=60
Rubber sheet thickness 25mm 25mm



Practical Application

DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project 0

DSJ-180 Pulling Force 8KN Cable Hauling Machine For Cable Laying Project 1
