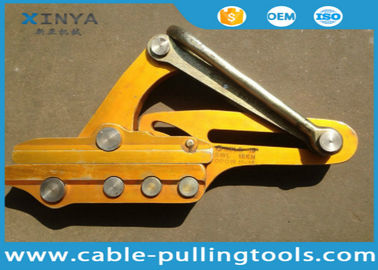

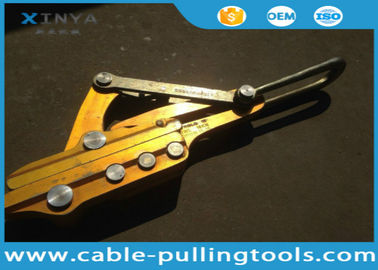

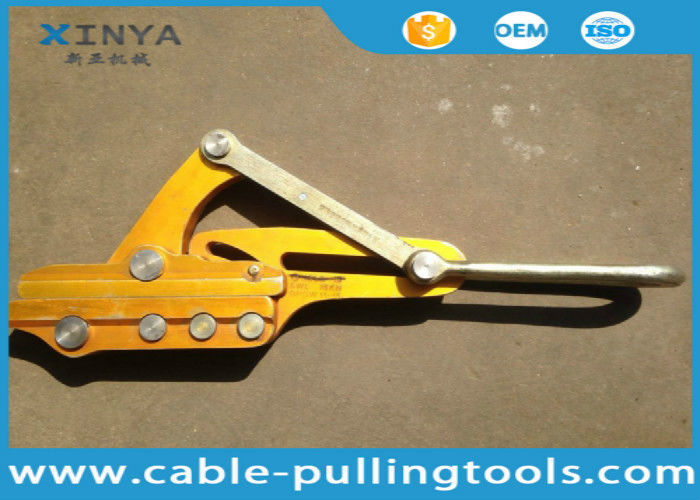

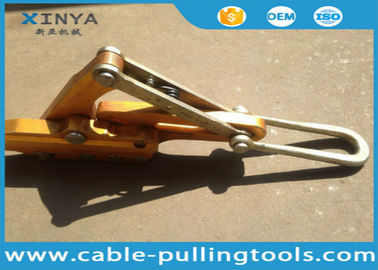

16 KN Aluminum Come Along Clamps Wire Grips

16 KN Aluminum Come Along Clamps Wire Grips
16 KN Aluminum Come Along Clamps Wire Grips 16 KN Aluminum Come Along Clamps Wire Grips 16 KN Aluminum Come Along Clamps Wire Grips 16 KN Aluminum Come Along Clamps Wire Grips

Large Image :  16 KN Aluminum Come Along Clamps Wire Grips

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SWL
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece
Price: USD50-100/set
Packaging Details: packed with CARTON.
Delivery Time: 15 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1000 Piece/Pieces per Month

16 KN Aluminum Come Along Clamps Wire Grips

Description
Function: Tightening Cable Weight(KG): 4.5
Rated Load: 16KN Type: Wire Grip Clamp
Application: Power Construction Tool: Fiber Optic Cable Tools
Name: 16KN Come Along Clamps Wire Grip Clamp For 11-15mm OPGW
High Light:

wire rope clip

,

fiber optic cable stripping tool

,

16KN Fiber Optic Cable Tools

16 KN Aluminum Come Along Clamps Wire Grips For 11-15mm Opgw



Characteristic



It is used for holding the OPGW overhead optical ground wire.

The diameter of optical cable is same as the size of clamp,in order to ensure clamping firmly, reduce the pressure of clamped parts  and protect the inside fiber of cable from damaging.

The body is forged from high strength aluminum-titanium alloy , and use the bolt to fasten to prevent the line slipping and hurting.

You need to indicate the outer diameter of optical cable and the model number of optical cable when you place the order.

Customer in Heart, Quality in Hand, Technology in the Lead.



Technical Data

Model No.

Cable Diameter(mm)

Rated Load(KN)

Weight(kg)

LOPG-1

Φ8-20

25

3.8

LOPG-2

Φ11-15

16

5.6

LOPG-3

Φ15-17

16

5.6



16 KN Aluminum Come Along Clamps Wire Grips 0

16 KN Aluminum Come Along Clamps Wire Grips 1

16 KN Aluminum Come Along Clamps Wire Grips 2
