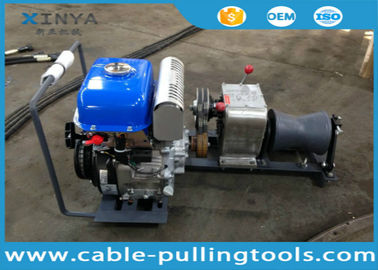

Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch

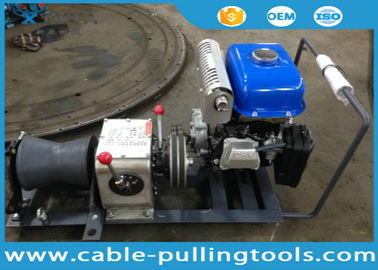

Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch
Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch

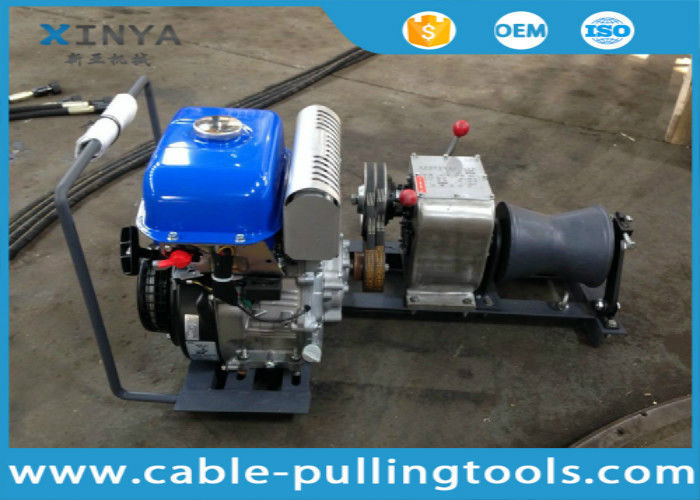

Large Image :  Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINY
Certification: ISO
Model Number: JJM1Q
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD750-900/set
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 100sets/week

Light Weight JJM1Q YAMAHA Cable Pulling Winch 1 Ton , Gasoline Powered Winch

Description
Application: Power Construction Usage: Cable Pulling
Capacity: 10KN Engine: Yamaha Engine
Max Pulling Speed: 15m/min Selling Point: Light Weight,compact Structure
Max Load: 10KN Name: JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton
High Light:

cable stringing equipment

,

conductor stringing equipment

Light Weight JJM1Q YAMAHA Gasoline Cable Pulling Winch 1 Ton



Application

1. It is used for tower erection

2. It is used for pole setting

3. Stringing wire in electrical power line construction.

Winch can be modified as per requirement,

such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Structure
1. roller wheel

2. transmission

3. diesel or gasoline engine

4. the base frame composition

5. Motor cutter grinding works:

winch is used to pull the slot groove rope connected directly to gasoline or diesel engine, electric motor as the driving force,

after shifting box of gear to achieve the required speed, the machine is located on steel, ro. bust and easy to move.



Transmission and Brake System

1. Belt driven transmission

2. Automatic clamp brake

and clutch brake transmission interlock two brakes are braking action in positive and negative directions.



Maintenance and safe use

1. Engine use and maintenance, according to the machine instructions.
2. Lifting shall not exceed in line with use.
Lubricating oil surface must be kept within 1/4
3. gearbox, before using the machineoutside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gearis stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak.Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessarydisassembly, but can not use a hammer.


Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-Q Yamaha engine 4 HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
Electric motor (Slow) 10.0 0.8 48
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
