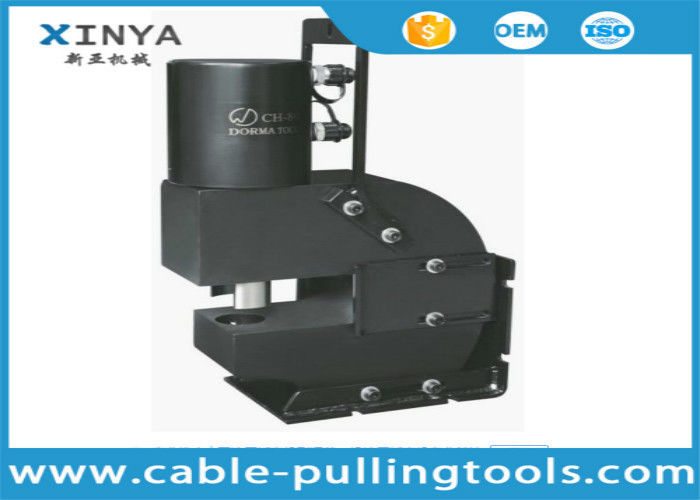

CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet

CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet
CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet

Large Image :  CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet

Product Details:
Place of Origin: Jiangsu ,China
Brand Name: XINYA
Certification: ISO
Model Number: CH-80
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: USD450-600/set
Packaging Details: wood case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets/month

CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet

Description
Type: Hydraulic Hole Puncher Application: Punching
Weight:: 50 Output: 50T
Model Number: CH-80 Depth Of Throat: 115mm
Accessories: 16/18/22/25mm Name: Hydraulic Punch Machine Model CH-80 For Punching Hole On Metal Sheet
High Light:

busbar bending machine

,

busbar punching machine

CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet



Feature

Hydraulic punch tool specialized for punching "L" shape or "H" shape of copper and aluminium sheet

The bottom of the tool with flat seat design to ensure stable placement

It can match pumps CP-700 and DYB-63A



Model:CH 60

Apeture (mm) 10.5mm ,13.8mm,17.5mm,20.5mm
Output ( T ) 31T
Iron sheet 6mm
Copper busbar 10mm
Throat Depth 95mm
Weight 19-50kg



Modle:CH 70

Punching force 35T
Max thickness of sheet 12mm of copper sheet/ 6 mm of metal sheet
Depth of throat 110mm
Height approx.460mm
Weight approx.34.5kg.
Package carton
Size 390X250X140mm
Accessories 3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm
Note it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A.

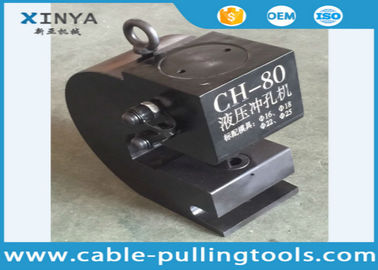

Model:CH 80

Punching Force 50T
Max thickness of sheet 16mm of coppet sheet/14mm of metal sheet
Depth of throat 115mm
Weight approx.30kg
Package wooden case
Size 400*260*160mm
Accessories 16/18/22/25mmmm
Note

It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump.





CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet 0CH -80 Hydraulic Punch Machine for Punching Hole On Metal Sheet 1
