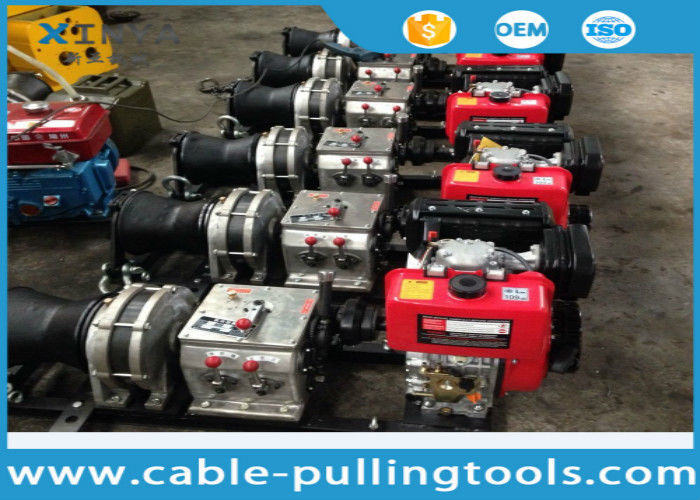

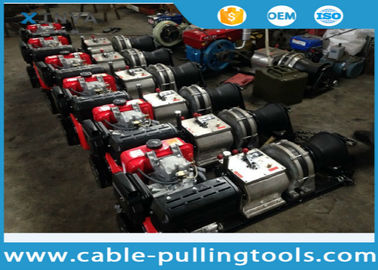

Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch

China Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch supplier
Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch supplier Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch supplier

Large Image :  Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch

Product Details:

Place of Origin: Jiangsu,Chian
Brand Name: XINYA
Certification: ISO
Model Number: JJM3C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: get latest price
Packaging Details: Packed with Carton or wooden case
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 200sets for one month
Contact Now
Detailed Product Description
Type: Diesel Engine Power Rated Power: 10KW
Dimension(mm): 1100*498*600 Weight(kg): 137
Rated Loading Capacity: 5 Ton Max Pulling Speed: 24m/min

Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch



Features

1 small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2 light weight.

For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3 high efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4 safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5 widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power(KW) Dimension(mm) Weight(kg)
JJM-5B 186F Diesel Engine Fast 9 24 10 1100*498*600 137
Mid 15 14
Mid 30 9
Slow 50 5




Fast Speed 5 Ton Winch Machine , Heavy Duty Cable Pulling Winch
