Product Details:
|
| Function: | Tight Wire | Material: | Steel |
|---|---|---|---|
| Weight: | 6.5KG | Rated Load (KN): | 50 |
| Type: | Wire Grip | Application: | Tightening 11-15mm Wire Rope |
| Name: | Anti Twist Steel Rope Gripper Wire Grip | Product Name: | SKG50N Anti Twist Steel Rope Gripper Wire Grip For 11-15mm Rope |
| High Light: | construction hand tools,building construction tools |
||

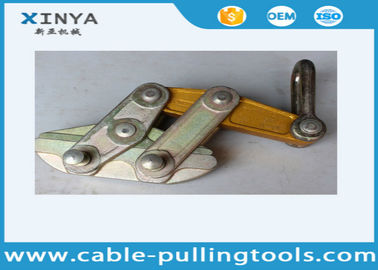

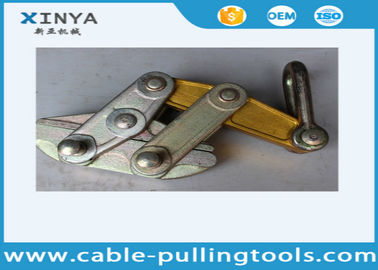

Steel Rope Gripper
This SKG-N series steel rope gripper is suitable for gripping the anti-twist steel wire rope. It is equipped with the V shaped single jaw. Both side panels of our product bear the symmetric force. In this way, the weight can be effectively reduced. When the order is placed, the detailed specifications about the anti-twist steel wire rope should be clearly indicated.
Data Sheet
| Item number | Model | Rated load (kN) | Applicable wire rope(mm) | Weight (kg) |
| 13155 | SKG50N | 50 | 11~15 | 6.5 |
| 13156 | SKG70N | 70 | 16~18 | 8.5 |
| 13157 | SKG120N | 120 | 19~21 OR 22~24 | 13.6 |
| 13158 | SKG200N | 200 | 26~30 | 32.5 |
Usage
applied to grip anti-twist steel rope
Feature
single V type clipper gap. two side load symmetry acting force ,lighten weight .
Notes
please writing clearly the detail specification of anti-twist wire rope .
Packing and delivery
