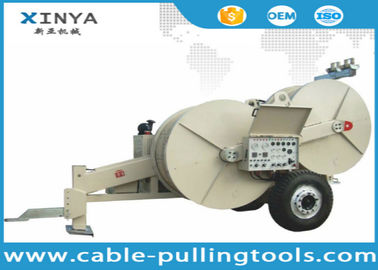

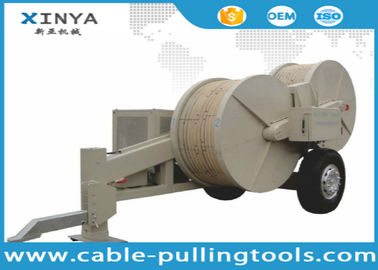

SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission

SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission
SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission

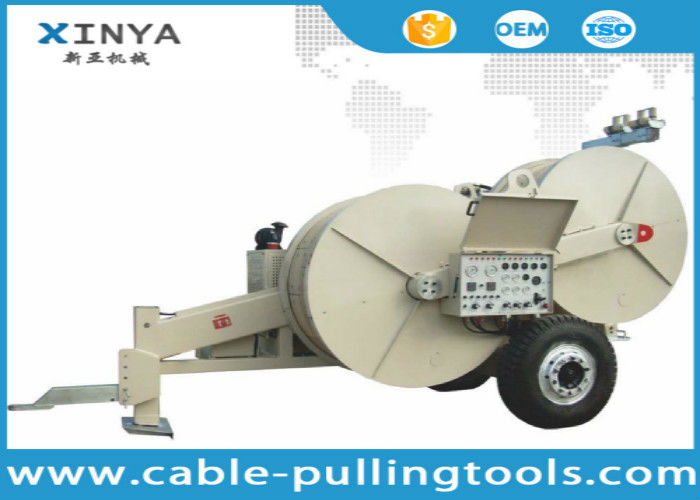

Large Image :  SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: SA-YZ2x80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: Standard Export Packing
Delivery Time: 90 workdays after payment
Payment Terms: L/C, T/T,
Supply Ability: 1 sets/month

SA-YZ2x80 Cable Tensioners / Hydraulic Tensioner for 500KV Overhead Line Transmission

Description
Maximum Tension: 2x80KN Or 1x160KN Max Continual Tension: 2x75KN Or 1x150KN
Max Pulling Speed: 5km/h Bull Wheel Bottom Of Groove Diameter: 1700mm
Number Of Grooves: 2x5 Max Pull-back: 2x63or 1x126KN
Product: 2x80KN Hydraulic Tensioner Warranty: 1 Year
High Light:

tension stringing equipment

,

cable puller tensioner

SA-YZ2x80 Hydraulic Tensioner for 500KV Overhead Line Transmission



Essential parameter

Maximum Tension(kN) 2×80 or 1×160
Continuous Tension(kN) 2×75 or 1×150
Maximum speed (km/h) 5
Bullwheel bottom of groove diameter (mm) Φ1700
Number of grooves 2×5
Maximum pullback (kN) 2×63or 1×126
Maximum speedback (km/h) 2×1.6
Maximum suitable conductor diameter (mm) Φ45
Engine power /speed (kW/rpm) 82.5/2500
Dimensions (mm)53 5300 ×2300 ×2900
Weight(kg) 8500



Uses:

Apply to paying off 2 fission ACSR-630 and the following size conductor in mountainous and hilly land area,

Paying off fission ACSR-720 and the following size coductor in flat area, Paying off OPGW,

ADSS or 500kv pulling rope in various area, and replacing lines under all-weather situation.



Features:

1. Tension stringing or traction pull with continuously variable mechanism transmission and over load protection;
2. Normally closed type multiple disc brake is effected by open spring pressures with loss pressure braking fuction;
3. Easy operation and maintenance.



Specification:

1. Configuring Germany KPM gear reducer, AKG or U.S. TTP radiator;
2. Configuring Germany Rexroth hydraulic motor, hydraulicpump or U.S. Sauer hydraulicpump;
3. Configuring Beijing DEKEYEYA hydraulic valve.
