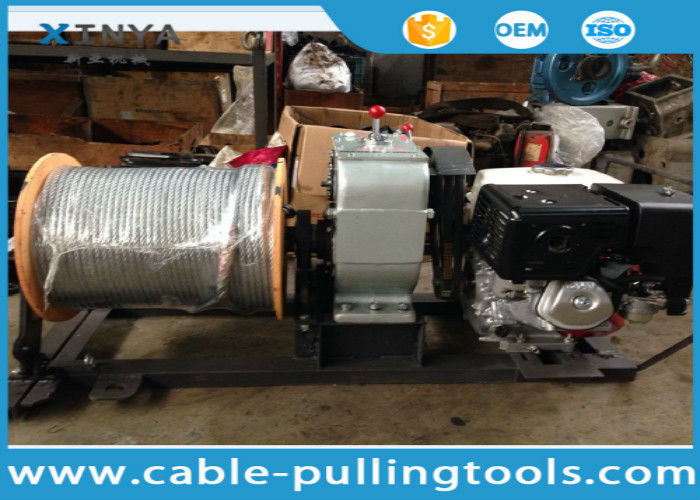

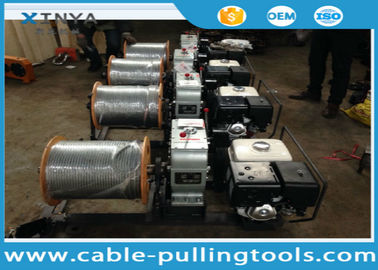

Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope

China Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope supplier
Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope supplier Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope supplier

Large Image :  Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope

Product Details:

Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JJM5Q

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD1000-1500/set
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets/week
Detailed Product Description
Max Load: 50KN Engine: Honda Engne
Applicaiton: Power Construction Usage: Cable Pulling
Power: GX390 13HP Item: Gas Engine Powered Winch

5 Ton Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope





Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Work principle engine powered winch

The winch transforms electric energy into mechanical energy through the motor1, which is rotor of the motor moves, outputs, and then through the brake 2, and the reducer 3 reduces speed to rotate the reel 4. The reel winds the wire rope and passes through pulley block to make the hook lift the load Q, and transforms mechanical energy into mechanical work finishing transportation, load and unload of heavy weights.



Features of engine powered winch

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.

8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc…



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Weight(KG)
JJM5Q Slow 50 5 HONDA GASOLINE GX390 13HP 292
Fast 30 11
Reverse - 3.2



FAQ:

1. Is your product customized?
Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
This type product is just for application in general manufacturing workshop.For hazardous environment, please consult our professional sales manager.
7. Do your side can provide lift tools?
Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!



Other Cable Laying Tools we produced:

Honda Gas Engine Powered Winch Cable Pulling Tools With 300M Wire Rope
