Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H

Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H
Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H

Large Image :  Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO
Model Number: SIPZ-7H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Latest price
Packaging Details: plywood case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 600 Set/Sets per Month

Hydraulic Cable Drum Jacks Transmission Line Stringing Tools SIPZ-7H

Description
Brake Force (N.M): 2000 Rotation Speed (rpm: 45
Weight: 350kg Max Capacity: 7T
Accommodated Reel Diameter: ≤Φ1250-2500mm Application: Raise And Support Reels In Conductor
High Light:

wire rope pulley block

,

cable hoist puller

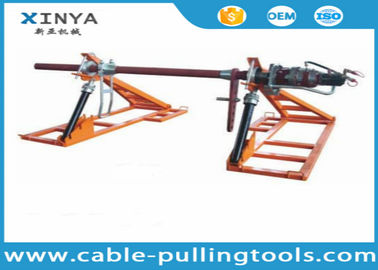

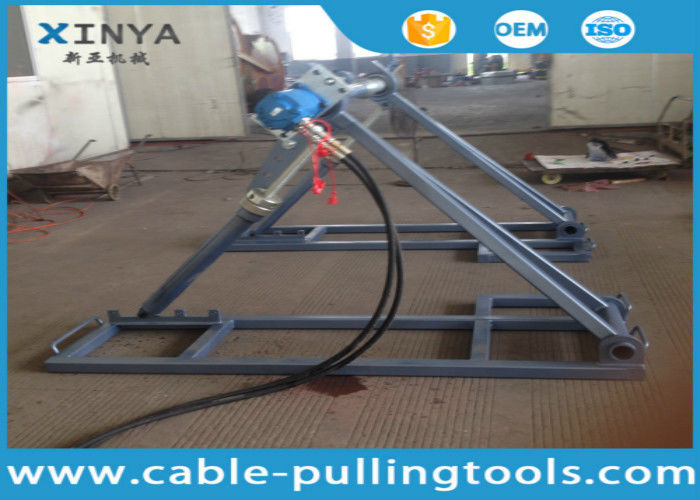

SIPZ-7H Hydraulic Drum Stands Cable Drum Jacks with Hydraulic Motor



Drum stands with hydraulic motor is used with hydraulic tensioner for supporting conductor drum in transmission line stringing operation,

7 Ton Hydraulic reel stand with Motor

Item No. Model Accommodated Reel Brake force (N.M) Rotation speed (rpm) Weight (kg)
Diameter (mm) Width (mm) Bore (mm) Max. Weight
15152 SIPZ-7H ≤Φ1250-2500 ≤1400 Φ80-125 7Ton 2000 45 350

Application: It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.

Features: It could be dismantled into 5 pieces, easy for transportation.

10 Ton Hydraulic reel stand with Motor

Item No. Model Accommodated Reel Brake force (N.M) Rotation speed (rpm) Weight (kg)
Diameter (mm) Width (mm) Bore (mm) Max. Weight
15155 SIYZ10 ≤Φ2000-3000 ≤1700 Φ80-125 10 Ton 3300 45 400

Application

It is used to raise and support reels in conductor or earth wire stringing operations. The reel could be controlled by hydraulic motor in both rotation directions. The hydraulic reel stand could be driven by hydraulic tensioner or hydraulic puller tensioner, through 13 meter long hydraulic pipe.

Features: It could be dismantled into 5 pieces, easy for transportation.



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The machine will be loaded in container and fixed with steel wire rope.

2. The accessory and operation manual will be packed in plywood case.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
