SZ3A-10 100KN Balancing Head Boards Running Board for Three bundle conductors

China SZ3A-10 100KN Balancing Head Boards Running Board for Three bundle conductors supplier

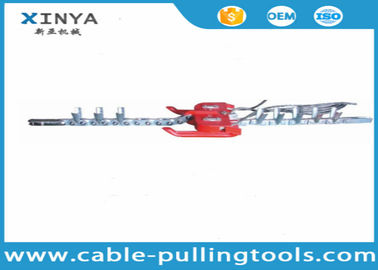

Large Image :  SZ3A-10 100KN Balancing Head Boards Running Board for Three bundle conductors

Product Details:

Place of Origin: Jiangsu , China
Brand Name: XINYA
Certification: ISO9001
Model Number: SZ3A-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Get Latest Price
Packaging Details: standard export wooden case or according to your opotion
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Detailed Product Description
Rated Load: 100KN Weight (kg): 114
Application: Stringing 3 Bundled Conductors Warranty: 1 Year
Item: 3 Bundled Running Board Steel Wire Rope Length: 1x30+1x15M

SZ3A-10 100KN Balancing Head Boards Running Board for Three bundle conductors(Balancing Type)



Application:
It is used for stringing 3 bundled conductors, to connect the pilot wire rope with conductors.

Data Sheet
Item number Model Rated Load(KN) Applicable stringing block sheave width(mm) Weight(kg) Steel Wire Rope Length(m)
17228 SZ3A-10 100 100 114 1×30+1×15
17229 SZ3A-13 130 110 130 1×30+1×15
17230 SZ3A-18 180 110 142 1×30+1×15

Feature:they are designed to avoid torsion strain accumulation during line stringing.

Notes:Can be customized according to the specification of other stringing block.

SZ3A-10 100KN Balancing Head Boards Running Board for Three bundle conductors

Company Infomation

Our main products are 1 ton, 2 tons, 3 tons, 5 tons, 8 tons JJM series cable pulling winch, hydraulic tensioner,hydraulic puller,cable laying euiqpments,high pressure hydraulic pump with hydraulic crimping tools,come along clamp,stringing pulley, cable roller and cable drum trailer, steel bar, aluminum alloy gin pole , And other power construction equipment and a variety of large tonnage forklift mast and a variety of special requirements of non-standard gantry.

Manufacturing process is complete, strong technical force, processing capacity is complete, finished products are strictly standardized technical quality testing, a sound quality control and after-sales service system, formed a certain scale of power equipment production capacity. Our existing variety of equipment are more than 80 sets, processing capacity, more sophisticated equipment (processing centers and CNC equipment 15 sets) to ensure product quality.
