Product Details:
|
| Wire Size Range (mm):: | 9-26 | Running Speed (m/min): | 17 |
|---|---|---|---|
| Climbing Angle: | 31 | Horizontal Tensile Strength (N): | 350 |
| Weight: | 46.5kg | Dimension: | 447x488x763 Mm |
| High Light: | wire rope clip,cable pulling grips |
||

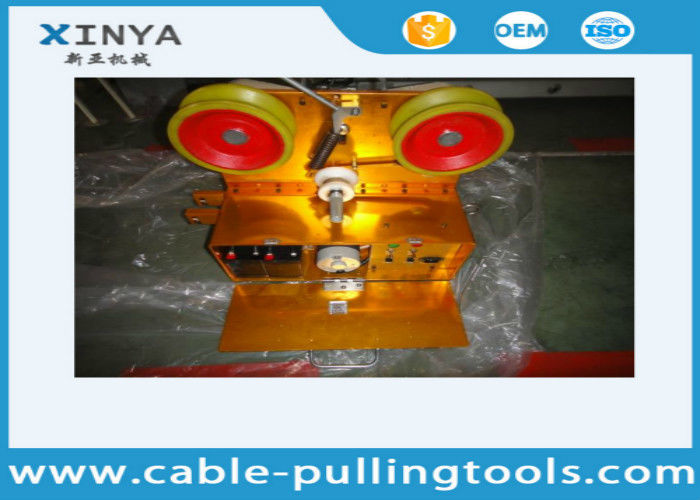

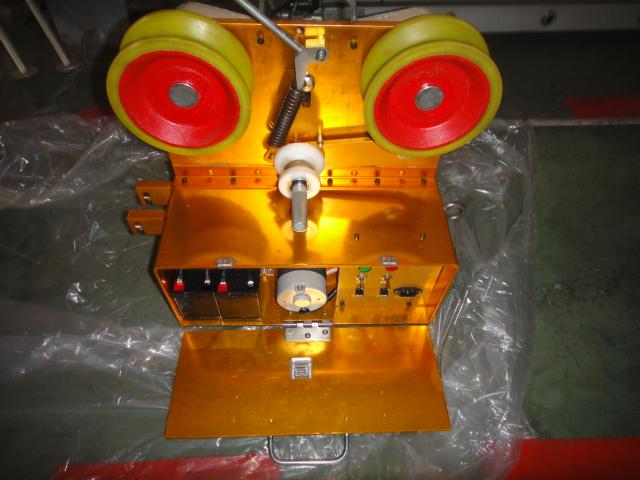

650W OPGW Self Moving Tension Stringing Equipment ZZC350 31 deg Climbing Angle
Data Sheet
| Item No. | Model | Wire Size Range (mm) | Running Speed (m/min) | Climbing Angle | Horizontal Tensile Strength (N) |
| 20121 | ZZC350 | 9-26 | 17 | 31º | 350 |
Weight: 46.5 Kg. Dimension: 447x488x763 mm.
Remote Control distance: 300-500m.
Petrol Engine Model: YK950/650W.
Electric Motor: 100YYJ140-3 (140W)
Self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another. It has remote control system and cab be running on earth wire or conductor by self driving system.
The machine is always used in hot line OPGW installation project, or conductor changing project. We have developed whole set of machines and tools for OPGW hot line installation.
Shipment
1. The blocks will be shipped in plywood case
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The machine will be packed in plywood case
2. It also can be steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
Contact Person: Ms. Wendy
Tel: +8615050307199
