Product Details:
|
| Max Pulling Speed(m/min): | 80/85/95 | Weight(KG): | 1650/2200/4000 |
|---|---|---|---|
| Material: | Steel | Number Of Grooves: | 7/7/8 |
| Rated Pulling Force(KN): | 35/55/80 | Bottom Diameter Of Drum(mm): | 320*2/460*2/540*2 |
| MOQ: | 1 Set | Warranty: | 1 Year |
| High Light: | cable drum trailer,cable tower machine |
||

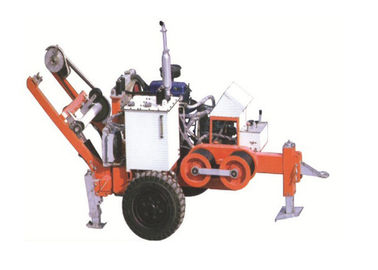

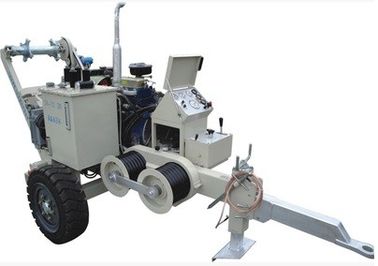

Steel Material Good balance 3.5 Ton SA-YQ Series Hydraulic Puller with Low noise
Application and Characteristic
1. Mounted on trailer with rigid axle for towing and the turnover towing drawbar .the structure refer fig 1
2. The engine, main pump, main motor, reducer, radiator are import parts and ensure the hydraulic system running stability and reliable.
3. Closed hydraulic circuit, transmission efficiency high and operate convenient
4. Infinitely variable speed control. pull,pull speed can read on the line pull gauge, the maximum pull for conductor –stringing operation can be preset, automatic overpull protection system.
5. Spring applied –hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
6. Integral self-loading reel winder with automatic level wind.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for 3.5 Ton Hydraulic Gear Puller
| Prduct NO. | 80023 | 80024 | 80025 |
| Type NO. | SA-YQ-35B | SA-YQ-55B | SA-YQ-80B |
| Maximum Tension(kn) | 35 | 55 | 80 |
| Continuous Tension(kn) | 30 | 50 | 60 |
| Maximum speed (m/min) | 80 | 85 | 95 |
| Bottom diameter of Drum(mm) | Φ320*2 | Φ460*2 | Φ540*2 |
| Number of grooves | 7 | 7 | 8 |
| Maximum suitable conductor diameter (mm) | Φ15 | Φ17 | Φ21 |
| Max connector | Φ40 | Φ52 | Φ65 |
| Dimensions (m) | 3.3*1.65*2.2 | 3.6*1.7*2.2 | 3.5*2.25*2.1 |
| weight(kg) | 1650 | 2200 | 4000 |
