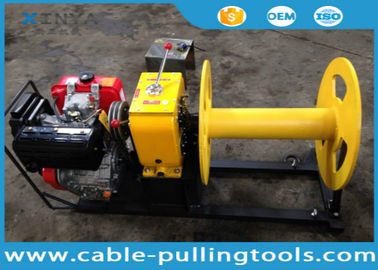

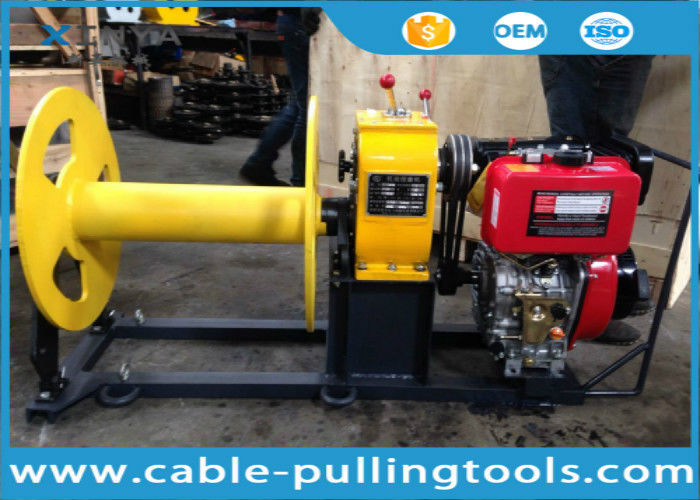

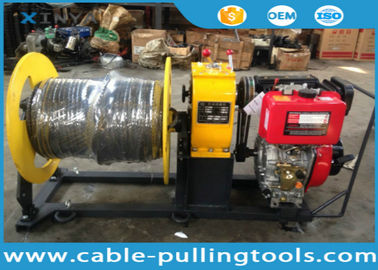

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood
Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood

Large Image :  Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood

Product Details:
Place of Origin: Jiangsu,China
Brand Name: XINYA
Certification: ISO
Model Number: JJM3C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: plywood case
Delivery Time: 7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500sets/month

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood

Description
Application: Cable Pulling,hoisting,lifting Capacity: 30 KN
Max Load: 3ton Maximum Pulling Speed: 7m/min
Engine: Diesel Engine Power: 4HP
Weight(kg): 150 Size(mm): 1000*680*550
Name: 3 Ton Wire Rope Lifting Winch With Diesel Engine Type: Wire Rope Diesel Winch
High Light:

wire pulling tools

,

conductor stringing equipment

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood



Engine powered winch introduction

Engine powered winch is set up high-voltage transmission lines and laying of aerial construction machinery underground cables, smooth, convenient for Tower Group legislature, set up guide (land) lines, lifting, pulling in a variety of complex conditions. Motor cutter grinding widely used in electricity, telecommunications line construction group established tower or motor actinomycetes, also in place for lifting and pulling heavy objects, suitable for field sites without electricity, the use of flexible construction, docks and so on. The experiments and field practice has proved that with a reasonable structure, small size, light weight, utilitarian large, flexible operation, easy handling, etc., the majority of electric power, telecommunications operators welcome. Motor cutter grinding force divided by diesel powered winch and winch motor gasoline.



Application

3 Ton Winch Drum With Petrol Engine Powered Winch is used for tower erection,pole setting,stringing

wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical  shape and coming with steel rope.



Technical Data

Model Specificaiton Gear Line Pull Pulling Speed
KN m/min
JJM-3C Overall Size:1100*600*650 Slow 30-10.7 4.5-12.5
Weight:130kg without rope Quick 16-6 2.5-7
Power:Air Cooled Diesel Engine 4HP Reverse - 2.5-7
Wire rope 10mm,200M

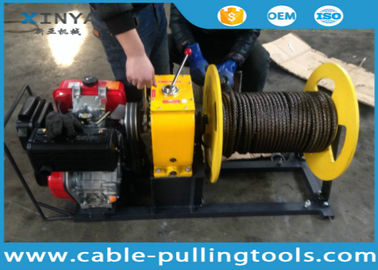

Test Before Delivery

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood 0



Different Types of Winches

Cable Pulling Tools 3 Ton Diesel Engine Winch For Pulling Wood 1



Model                  Engine  Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJQ-1 HONDA Petrol engine 4 HP (Slow) 10.0  0.8 36
(Fast) 15.0  0.6
Reverse 12.0  No Lifting!
JJD-1 Electric motor 2.2kw (Slow) 10.0  0.8 46
(Fast) 15.0  0.6
Reverse 12.0  No Lifting!
JJQ-3

HONDA Petrol engine(6HP)or

Homemade Petrol engine

(Slow) 5.0  3.0  82
(Fast) 9.0  1.8
Reverse 4.0  No Lifting!
JJC-3 Diesel engine(4HP) (Slow) 6.0  3.0  108
(Fast) 11.0  1.8
Reverse 4.5  No Lifting!
JJQ-5

YAMAHA Petrol engine (9HP)
or
HONDA Petrol engine

or

Homemade Gasoline engine

(Slow) 5.0  5.0  145
(Fast) 9.0  2.5
Reverse 3.2  No Lifting!
JJC-5 Diesel engine(6.6HP) (Slow) 5.0  5.0  180
(Fast) 9.0  2.5
Reverse 3.2  No Lifting!
JJQ-8

HONDA Petrol engine

or

homemade petrol engine 13HP

(Slow) 3.0  8.0  168
(Fast) 5.0  3.0
Reverse 3.0  No Lifting!
JJC-8 Diesel engine 10.5HP (Slow) 4.0  8.0  230
(Fast) 7.5  3.0
Reverse 3.7  No Lifting!
