Product Details:
|
| Application: | Cable Transportation | Weight(kg): | 600 |
|---|---|---|---|
| Max Payload(Ton): | 3 | Tyre: | 2 |
| Brake: | Hand Brake And Air Brake | Warranty: | 1 Year |
| High Light: | cable laying equipment,cable tower machine |
||

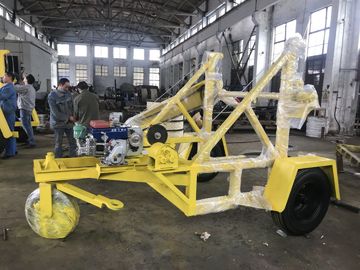

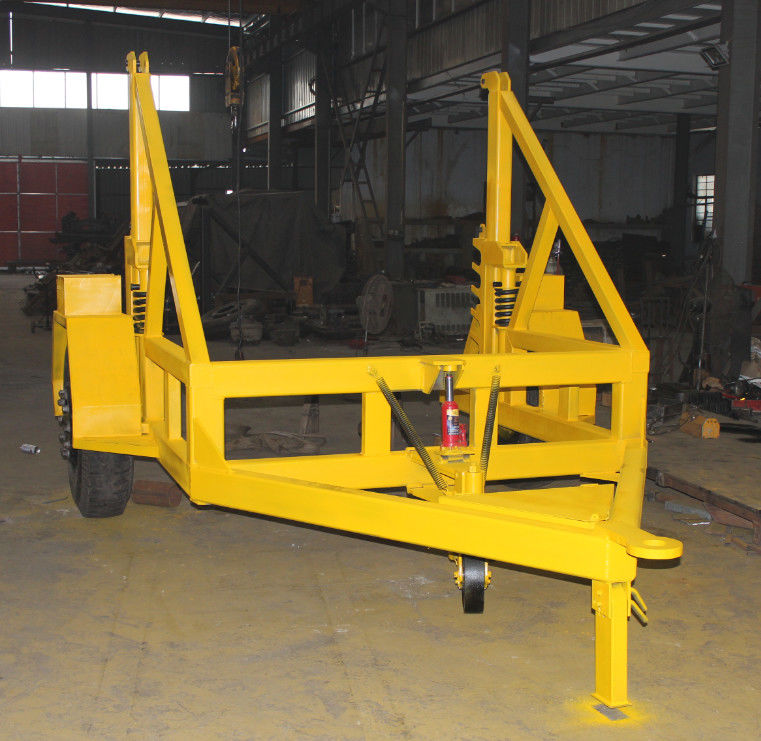

3 Ton Cable Drum Trailer Direct supplier Convenient cable transport 600 kg
Application
Cable trailers for power and power operations. Applicable to electric power, communication lines overhead works, easy to cable shipping display.
Features
Cable trailers for power and power sector operations. The utility model is suitable for overhead projects of electric power and communication lines, which is convenient for cable to be checked and unfolded, and is convenient and efficient to use.
Technical Data
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LZ-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LZ -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LZ -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LZ -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LZ -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
We can make products with special specification as your requirements.
