Product Details:
|
| Rated Load: | 3 T | Weight: | 17.5 Kg |
|---|---|---|---|
| Height: | 1.5 M | Usage: | Construction Hoist |
| Speed: | Various Selection | ||
| High Light: | construction hand tools,building construction tools |
||

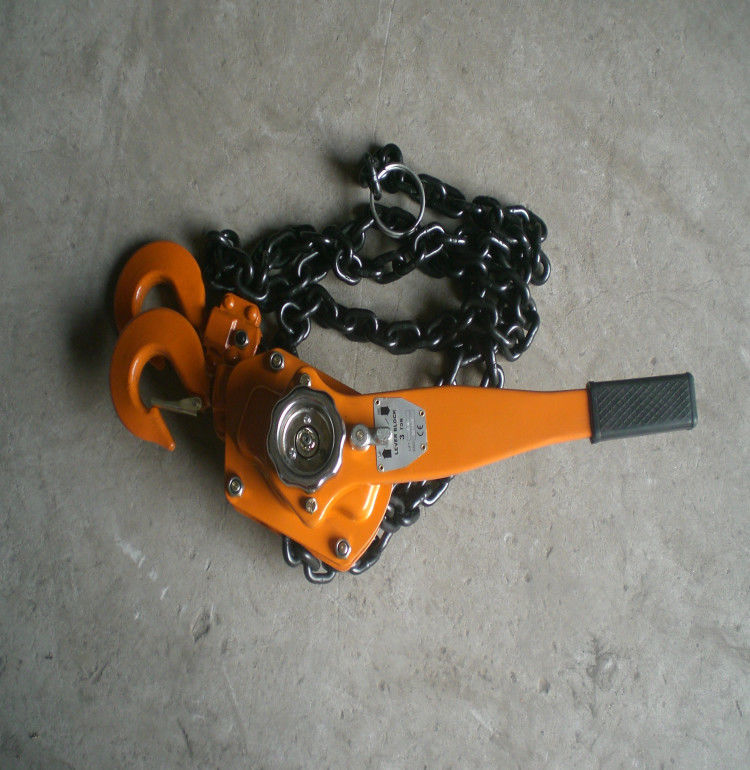

3T Lever Hoist Chain Pulley Block Tnsile Force of Full Loading 410N Tightening tools
Introduction
1. Hook:made of high-class alloy steel,it has high strength and high security.
2. Components:main components are all made of high-class alloy steel,with high precision and security.
3. Framework: slight design and more beautiful; with less weight and smaller work area.
4. Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
5. Encloser made of high-classed steel,more firmly and dexterous.
Application
It is for the lifting of objects and mechanical traction, tightening steel wire, aluminum wire .
Technical Data
| Model | 0.75ton | 1.5ton | 3ton | 6ton | |
| Capacity(t) | 0.75 | 1.5 | 3 | 6 | |
| Standard Lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test Load(t) | 9.2 | 18.4 | 36.8 | 73.5 | |
| Effort required to lift max load(N) | 148 | 216 | 336 | 345 | |
| Chain diameter(mm) | 6.3 | 7.1 | 9 | 9 | |
| Net Weight(kg) | 6.6 | 11.65 | 21.1 | 23.7 | |
| Dimensions(mm) | A | 155 | 170 | 198 | 198 |
| B | 128 | 147 | 182 | 230 | |
| C | 310 | 350 | 470 | 590 | |
| D | 240 | 365 | 365 | 365 | |
| G | 28 | 36 | 47 | 49 | |
Characteristic
1. Structure of advanced, safe, reliable, durable
2. High efficiency, easy operation, comfort
3. Small size, light weight, easy to carry
4. All structural steel
5. super alloy chain
6. All of gears
7. gear and rotating the shaft has bearings or bushings
8. Product surface after spray treatment
