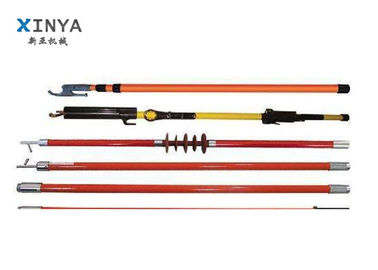

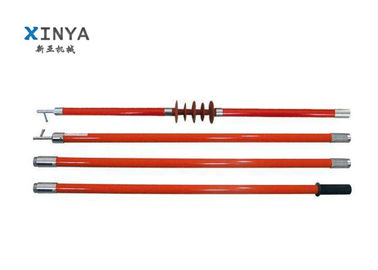

Product Details:
|
| Name: | Hot Stick Link Stick | Withstand Voltage (KV): | 10-500KV |
|---|---|---|---|
| Application: | High Voltage Switch Out Operating. | Color: | Red / Yellow |
| Material: | Fiberglass | Length: | 3-12m |
| High Light: | protective tools,construction safety products |
||
Quick Information
1. Applied Standard: IEC60855.
2. Voltage: Up to 550kV.
3. Length: up to 13M.
4. Max stage: 10 stages.
5. Color: safety yellow , orange or customer required color.
6. Connect type: Any length or every stage.
7. Univeral head material : Brass or Aluminium Alloy.
8. Insulation body part material: Epoxy FRP tube with foam filled .
9. Holding par material t: anti-slip treated painting.
10. Bottom part material : insulated black rubber or FRP block with anti-mouisture design
11.Marking: plastic sticker,print or customer's method.
| Fiberglass Hot Switch Sticks — One Section | |||||||||||
| No. | Catalogue No. | Dimension | Weight | ||||||||
| in. X ft. | mm X m | lbs. | kg | ||||||||
| 1 | ANSS001 | 1.25 X 4 | 31.7 X 1.2 | 2.1 | 1.0 | ||||||
| 2 | ANSS002 | 1.25 X 6 | 31.7 X 1.8 | 2.9 | 1.3 | ||||||
| 3 | ANSS003 | 1.25 X 8 | 31.7 X 2.4 | 3.6 | 1.6 | ||||||
| 4 | ANSS004 | 1.25 X 10 | 31.7 X 3.0 | 4.4 | 2.0 | ||||||
| 5 | ANSS005 | 1.25 X 12 | 31.7 X 3.6 | 5.1 | 2.3 | ||||||
| 6 | ANSS006 | 1.25 X 14 | 31.7 X 4.3 | 5.9 | 2.7 | ||||||
| 7 | ANSS007 | 1.5 X 8 | 38.1 X 2.4 | 5.0 | 2.3 | ||||||
| 8 | ANSS008 | 1.5 X 10 | 38.1 X 3.0 | 6.0 | 2.7 | ||||||
| 9 | ANSS009 | 1.5 X 12 | 38.1 X 3.6 | 7.0 | 3.2 | ||||||
| 10 | ANSS010 | 1.5 X 14 | 38.1 X 4.3 | 8.1 | 3.7 | ||||||
| 11 | ANSS011 | 1.5 X 16 | 38.1 X 4.9 | 9.1 | 4.1 | ||||||
| 12 | ANSS012 | 1.5 X 18 | 38.1 X 5.5 | 10.2 | 4.6 | ||||||
| 13 | ANSS013 | 1.5 X 20 | 38.1 X 6.0 | 11.2 | 5.1 | ||||||
| Fiberglass Hot Switch Sticks — two Sections | |||||||||||
| No. | Catalogue No. | Top | Bottom | Weight | |||||||
| in. X ft. | mm X m | in. X ft. | mm X m | lbs. | kg | ||||||
| 14 | ANSS014 | 1.25 X 4 | 31.7 X 1.2 | 1.25 X 4 | 31.7 X 1.2 | 3.8 | 1.7 | ||||
| 15 | ANSS015 | 1.25 X 5 | 31.7 X 1.5 | 1.25 X 5 | 31.7 X 1.5 | 4.6 | 2.1 | ||||
| 16 | ANSS016 | 1.25 X 6 | 31.7 X 1.8 | 1.25 X 6 | 31.7 X 1.8 | 5.3 | 2.4 | ||||
| 17 | ANSS017 | 1.25 X 7 | 31.7 X 2.1 | 1.25 X 7 | 31.7 X 2.1 | 6.1 | 2.7 | ||||
| 18 | ANSS018 | 1.25 X 6 | 31.7 x 1.8 | 1.5 X 8 | 38.1 X 2.4 | 7.8 | 3.5 | ||||
| 19 | ANSS019 | 1.25 X 8 | 31.7 X 2.4 | 1.5 X 8 | 38.1 X 2.4 | 8.0 | 3.6 | ||||
| 20 | ANSS020 | 1.25 x 8 | 31.7 X 2.4 | 1.5 X 10 | 38.1 x 3 | 9.5 | 4.3 | ||||
| 21 | ANSS021 | 1.25 X 10 | 31.7 X 3 | 1.5 X 10 | 38.1 X 3 | 10.3 | 4.6 | ||||
| Fiberglass Hot Switch Sticks — three Sections | |||||||||||
| No. | Catalogue No. | Top | Middle & Bottom | Weight | |||||||
| in. X ft. | mm X m | in. X ft. | mm X m | lbs. | kg | ||||||
| 22 | ANSS022 | 1.25 X 4 | 31.7 X 1.2 | 1.5 X 4 | 38.1 X 1.2 | 7.6 | 3.4 | ||||
| 23 | ANSS023 | 1.25 X 5 | 31.7 X 1.5 | 1.5 X 5 | 38.1 x 1.5 | 9.0 | 4.1 | ||||
| 24 | ANSS024 | 1.25 X 6 | 31.7 X 1.8 | 1.5 X 6 | 38.1 x 1.8 | 10.4 | 4.7 | ||||
| 25 | ANSS025 | 1.25 X 8 | 31.7 X 2.4) | 1.5 X 6 | 38.1 X 1.8 | 11.1 | 5.0 | ||||
Application
Other types hot stick and head we can do
