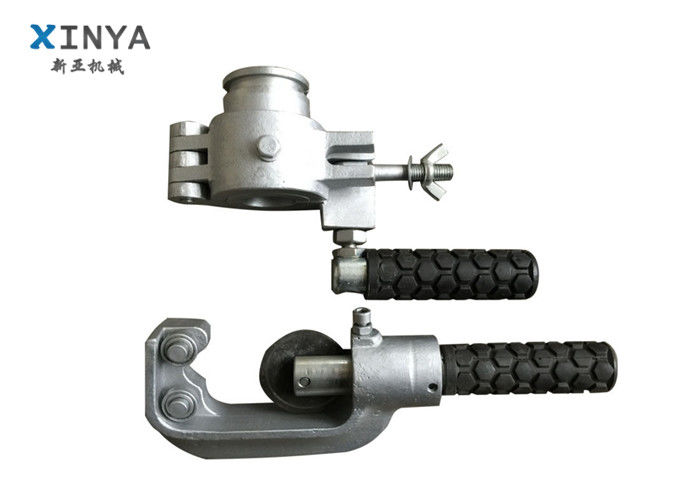

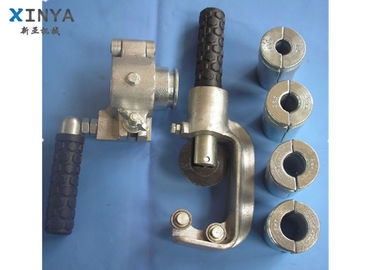

Product Details:
|
| Name: | Aluminum Hand Scrap Cable Stripper | Usage: | Stripping ACSR Conductor |
|---|---|---|---|
| Item: | Wire Stripper | Weight: | 1.5 Kg |
| Size: | 380*220*120 Mm | Stripping Range:: | ACSR From Diameter 20mm To 40mm(240mm2 To 720mm2) |
| High Light: | construction hand tools,building construction tools |
||
Key quality control of our products:
As u know, material and heat-treatment is the key point for the quality control, we have imported heat-treated machine, which is environmentment and final coming water is clean and NO acrid smell filled the air.
We keep our promise each of our blade for shipment are same line, same shape,
same thickness.
Feature:
1. Stripping aluminum wires around steel core for ACSR from diameter 20mm to 40mm(240mm2 to 720mm2)
2. Stripping thickness could be adjusted.
3. Don’t keep the knives reach steel core during stripping.
4. Blades can be resharpened or exchanged.
Technical Parameters:
| Model No.: | GBX 720 |
| Stripping Range: | aluminum wires around steel core for ACSR from diameter 20mm to 40mm(240mm2 to 720mm2) |
| Cutter Size: | 380*220*120 mm |
| Weight: | 1.5 kg |
Different types of cable stripping tools
| Model | Using range | Weight (kg) |
| BX | It is applicable to sht stripping of insulated conductor or power cable core end and middle section main insulation layer | 0.8 |
| BX40A | It is applicable to the stripping of the main insulated layer of the end of the power cable of 20-40mmpower cable, which is usually used to remove the main layer of the end of the 10KV cable. | 0.8 |
| SBX | It is suitale for the stripping of the insulating layer of a 10KV and 10kv cable with 35mm²-300mm² | 0.5 |
| BX40B | It is applicale to the stripping of the end semiconductor layer of the power cable of φ20-40mm, which is usually used to strip the semiconductor layer of the end of the 10KV cable. | 0.8 |
| LBX | It is applicable to the stripping of the main insulating layer of the main inslating layer of cable with no more thanφ30mm to the outer diameter of the cables, the insulation thickness is less than 4.5mm | 0.8 |
| KBX45 | Strip φ45mm cable insulation layer | 0.3 |
| KBX65 | Strip φ65mm below cable insulation layer and semiconductor layer | 1.4 |
| BX90 | It is applicable to the stripping and taping of the end of the high voltage cable of φ40-90mm. it usually used to remove the main unsulation layer of the end of the 110kv cable. |
2.7 |
