Product Details:
|
| Output: | 130KN | Working Stroke: | 38MM |
|---|---|---|---|
| Crimping Range: | 400mm2 | Weight: | 6.8KG |
| Application: | Crimping | Package: | Plastic Box |
| High Light: | hydraulic cable crimping tool,hydraulic wire cutter |
||

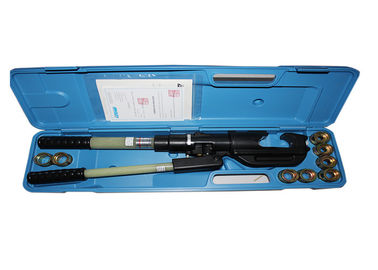

Manual Hydraulic Cable Lug Crimping Tools EP-510 For Crimping Terminal 50-400sqmm
Characteristics
1. Compression mould can be replaced, quick and safe operation;
2. Compression configuration: 50,70,95,120,150,185,240,300,400mm2
Press tools is suitable for DIN.AWG.JIS.
There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
Only one person can work.
Pump is connected to the tools, it can turn 180 degree when pressed on the head.
1. Design to accommodate hexagonal, dies of hydraulic tools for applying compression fittings too copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3. Automatic retraction when the pressure of crimper tools reaches 700kg/cm2 reached.
4. The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 200KV, keeping on the minute.
5. Hydraulic tools with 180 degree rotatable head.
6. The pressure of the hydraulic tools outside the body adjusts to press the valve.
Technical Data
| Item No: EP-510 | |
|
Crimping Range |
50-400mm^2 |
| Crimping Force | 13T |
| Crimping Type | hexagon crimping |
| Stroke | 16mm |
| Length | 470mm |
| Weight |
5kg |
| Package | plastic box |

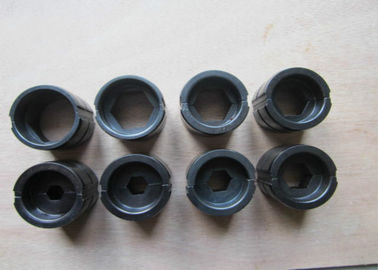

| Crimping Dies | 50,70,95,120,150,185,240,300,400mm^2 |
