Product Details:
|
| Maximum Linepull (kN): | 300 | Continuous Linepull (kN): | 250 |
|---|---|---|---|
| Maximum Linespeed (km/h): | 5 | Bullwheel:grooves Number: | 10 |
| Engine Power /speed (kW/rpm): | 298/2100 | MOQ: | 1 Set |
| Warranty: | 1 Year | Item: | Conductor Stringing Equipment Hydraulic Puller |
| High Light: | cable stringing equipment,wire pulling tools |
||

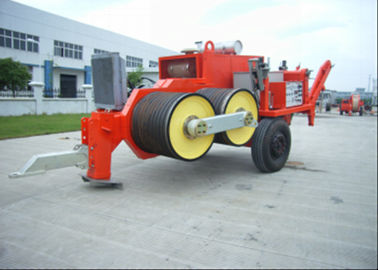

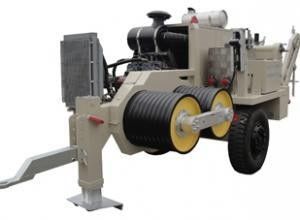

220KV Conductor Stringing Equipment Hydraulic Puller for high tension line SA-YQ300
Introduction
This hydraulic puller to meet the mountains,hilly terrain of 220 KV lines show the tension release of OPGW or can be used as ADSS fiber optic cable , and other traction exhibition release.
characteristic
1. full electric control engine ,accord with the third phase emission regulations of Europe nonroad mobile machinery .
2. infinitely variable speed and linepull control ,the pull in the rope can be read on the line pull gauge .
3. the Max.pull for conductor –stringing operation can preset ,automatic overpull protection system
4. Spring applied –hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
5. hydraulic pullrope pinch device ,replacing reel conveniently
6. attached reel winder with automatically level wind .load and unload conveniently .
Main component
1. Engine :Cummins (USA)water –cooled diesel engine
2. main variable displacement pump ,main motor :Rexroth (BOSCH)
3. Reducer : RR(Italian )
4. Main hydraulic valves: Rexroth (BOSCH)
5. Radiator :AKG
6. Hydraulic instrument :
7. Mating with model GSP1900 drum (order number :07125E)
GSP series drum
|
Order number
|
Model |
Dimensions(mm) |
Weight (kg) |
|||
|
A |
B |
C |
D |
|
||
|
07125A |
GSP950 |
250 |
450 |
400 |
950 |
40 |
|
07125B |
GSP1200 |
420 |
560 |
570 |
1200 |
60 |
|
07125C |
GSP1400 |
420 |
560 |
570 |
1400 |
75 |
|
07125D |
GSP1600 |
420 |
560 |
570 |
1600 |
120 |
|
07125E |
GSP1900 |
420 |
560 |
570 |
1900 |
135 |
Notes :if need drum stand ,please write in contract .
Technical Data
|
Maximum linepull (kN) |
300 |
|
Continuous linepull (kN) |
250 |
|
Maximum linespeed (km/h) |
5 |
|
Bullwheel bottom of groove diameter(mm) |
Φ960 |
|
Bullwheel:grooves number |
10 |
|
Maximum suitable steelrope diameter (mm) |
Φ38 |
|
Maximum through connector diameter (mm) |
Φ80 |
|
Engine power /speed (kW/rpm) |
298/2100 |
