Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel

Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel
Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel

Large Image :  Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINYA
Certification: ISO9001
Model Number: DDHZ
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: US$10~$40
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T,
Supply Ability: 500 pieces/month

Different Types Underground Cable Pulling Roller Cable Pulley With Aluminum / Nylon Wheel

Description
Item: Different Types Underground Cable Pulling Roller Cable Pulley Applciation: Underground Cable Pulling
Usage: Cable Pulling Application: Cable Laying Project
Wheel: Aluminum/nylone Name: Cable Pulling Roller Cable Pulley
Type: Straight Type Roller,corner Cable Roller And So On
High Light:

cable drum trailer

,

cable tower machine

Different Types Underground Cable Pulling Roller Cable Pulley

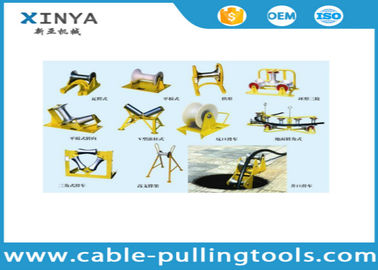

Cable Rollers:For cables up to diameter 150mm.

Cat. No. Rated Load (kN) Construction Weight (kg)
CR0110 10 Cast aluminum frame, aluminum (nylon) roller 5.4/3.6
CR0111 10 Steel tubing frame, aluminum (nylon) roller 4.5/3.1
CR0112 10 Steel tubing, long legs, aluminum (nylon) roller 5.8/4.2
CR0113 10 Steel plate base, aluminum (nylon) roller 5.5/3.7
CR0114 10 Steel tubing frame, aluminum (nylon) roller 4.7/3.3
CR0115 10 Steel tubing frame, aluminum (nylon) roller 4.7/3.3

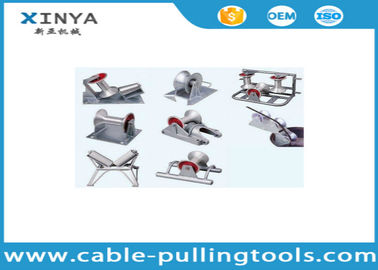

Corner Roller:Frames of corner rollers are linked together with stake pins to form a suitable bend to guide cables around the corner. (In the right pictures, three corner rollers are linked together)

Cat. No. Rated Load (kN) Max. Cable Dia. (mm) Weight (kg)
CR0116 10 150 11
CR0117 10 150 15



Manhole Rollers:Mounted on the verge of manhole to protect cables and pulling ropes.

Cat. No. Rated Load (kN) Weight (kg)
CR0118 10 10.8



Multi-Roller:Used to protect the cable when it enter or run out of a manhole. Easy to use.

Cat. No. Rated Load (kN) Weight (kg)
CR0120 10 10.8



Multi-Roller:Used to protect the cable when it enter or run out of a manhole. Easy to use.

Cat. No. Rated Load (kN) Weight (kg)
CR0125 80 3.3
CR0126 90 3.5
CR0127 100 3.8
CR0128 130 6
CR0129 150 7.2
