Product Details:
|
| Usage: | Cable Push Pull | Application: | Cable Laying |
|---|---|---|---|
| Engine: | Electric Engine | Power: | 1.1KW*2 |
| Pulling Force(KN): | 7 | Weight(kg): | 150 |
| Pulling Speed(m/min): | 9 | Applicable Cable Diameter(mm): | Φ25-Φ150 |
| High Light: | cable laying equipment,cable tower machine |
||

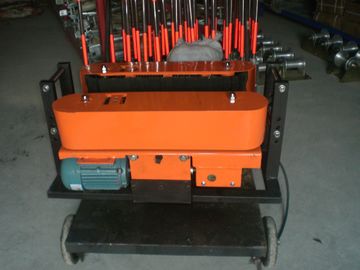

Cable Pulling Machine DSJ-150 Cable Conveyor With Electric engine For Cable Installation
Use:The DSJ series products are a kind of electric cable(or communication cable)electric machinery.
Characteric:
1.Adopts the structure of double shaft driving,the conveying force and gravity respectively in two direction of the cable,there is conductive to the production of cable insulation.

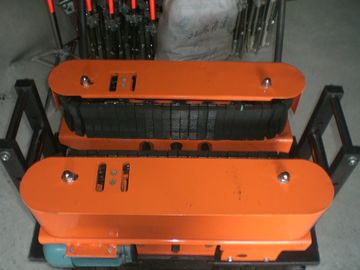

2.The conveying force through the composite crawler transfer,crawler uses the high strength wear resisting rubber,so that the cable force uniform,durable.
3.The machine is equipped with a height adjustable roller,convenient construction.
4.The upper part of the machine cane be equipped with a hinge wheel, use small power traction use is also very convenient.
5.The machine speed reducing mechanism of low noise ,small temperature rice ,and easy maintenance.
6.Can provide the electric control system of JSD supporting products according to user requirements(total control box) and winding wheel etc.
| Model | DSJ-150 | DSJ-180 |
| Application cable diameter(mm) | Φ25-Φ150 | Φ25-Φ180 |
| Pulling Force(KN) | 7 | 9 |
| Speed(m/min) | 9 | 6 |
| Power | 1.1KW×2 | 1.5KW×2 |
| Weight(kg) | 150 | 180 |
| Dimension(mm) | 950×500×400 | 1000×530×400 |
