Product Details:
|
| Application: | Cable Transportation | Weight(kg): | 900 |
|---|---|---|---|
| Max Payload(Ton): | 5 | Tyre: | 2 |
| Brake: | Hand Brake And Air Brake | Warranty: | 1 Year |
| High Light: | cable laying equipment,cable tower machine |
||

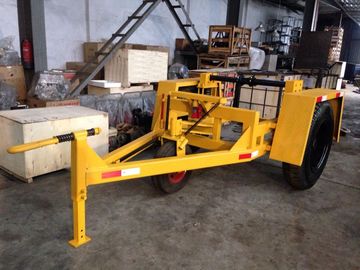

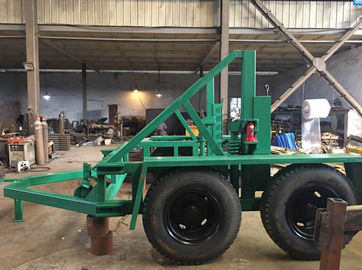

Direct supplier capacity 5 ton cable trailer cable drum trailer Hand Brake And Air Brake
Application
Cable trailer is suitable for power and electric power department operation. It is suitable for power, communication line overhead engineering, easy to cable consignment exhibition.
Features
Cable trailers for power and power sector operations. The utility model is suitable for overhead projects of electric power and communication lines, which is convenient for cable to be checked and unfolded, and is convenient and efficient to use.
Technical Data
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LZ-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LZ -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LZ -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LZ -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LZ -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
We can make products with special specification as your requirements.
